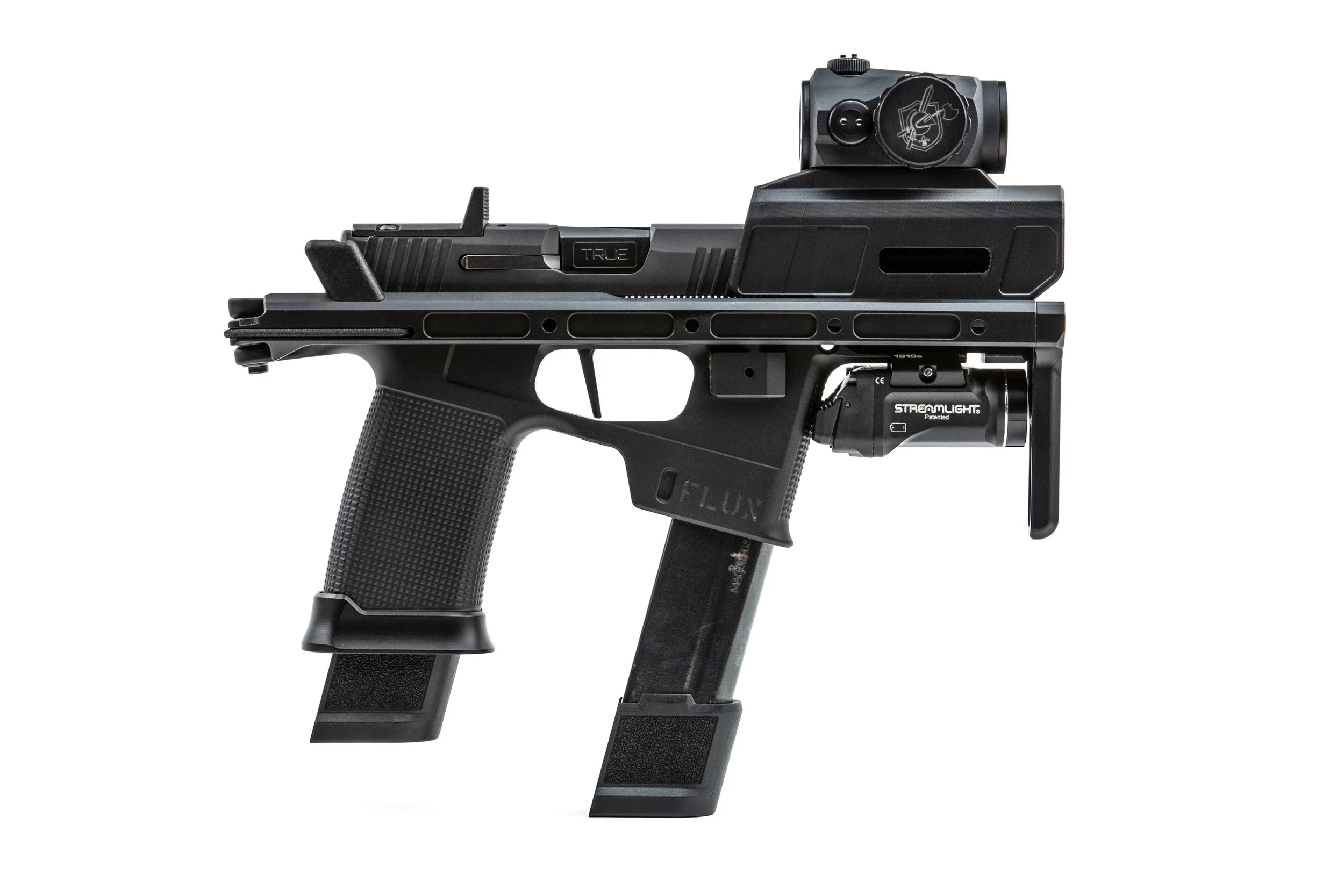

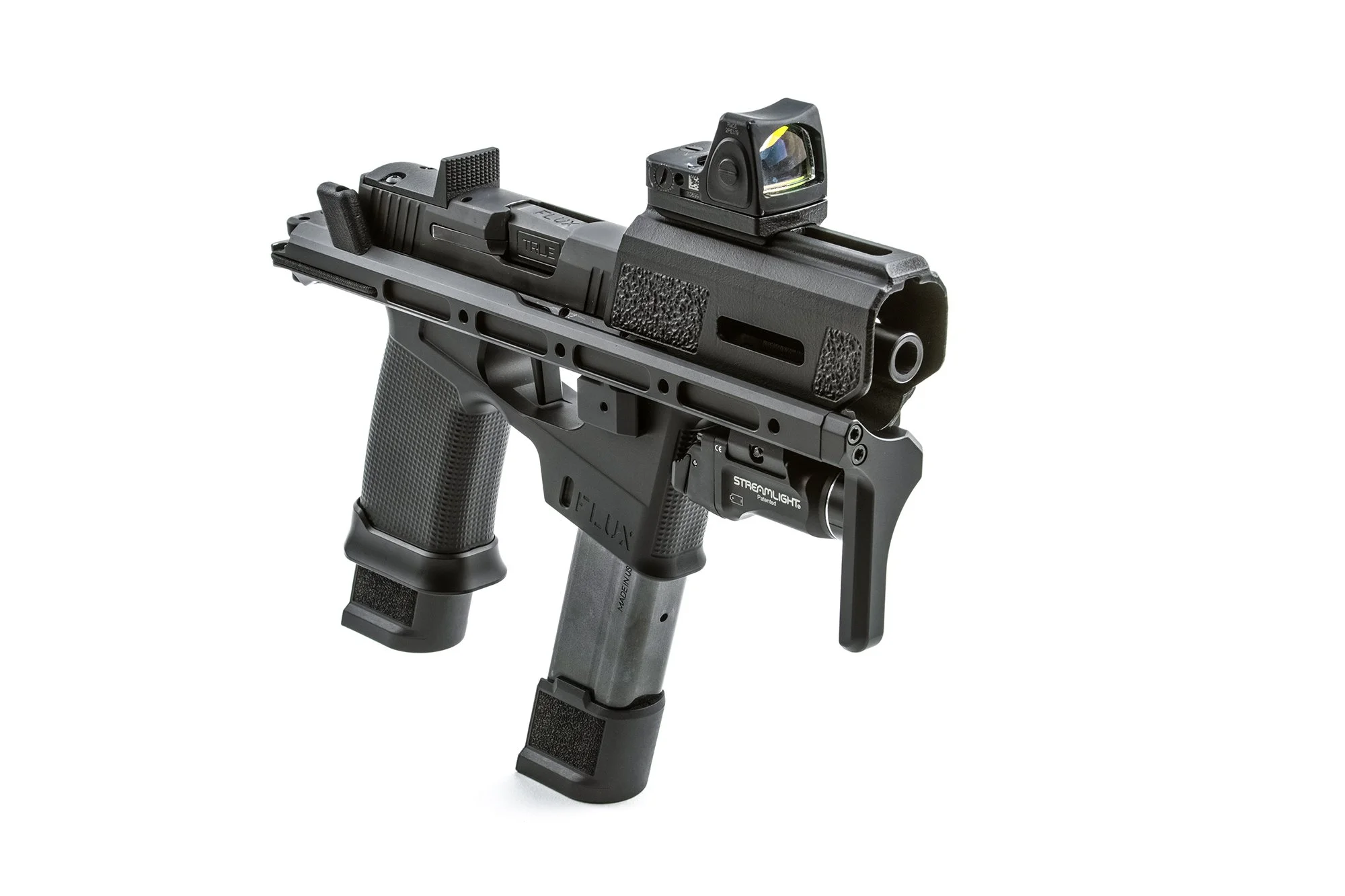

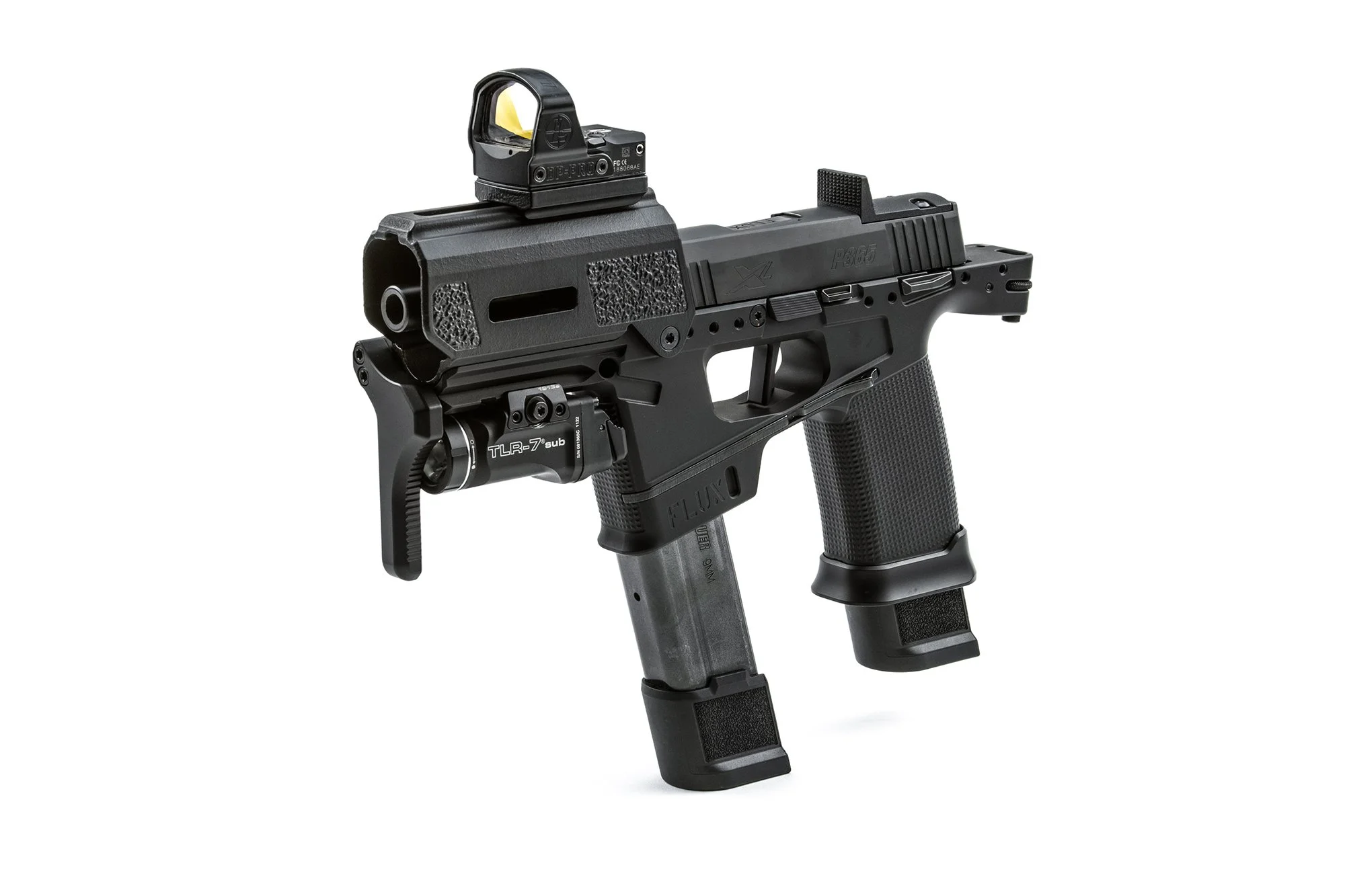

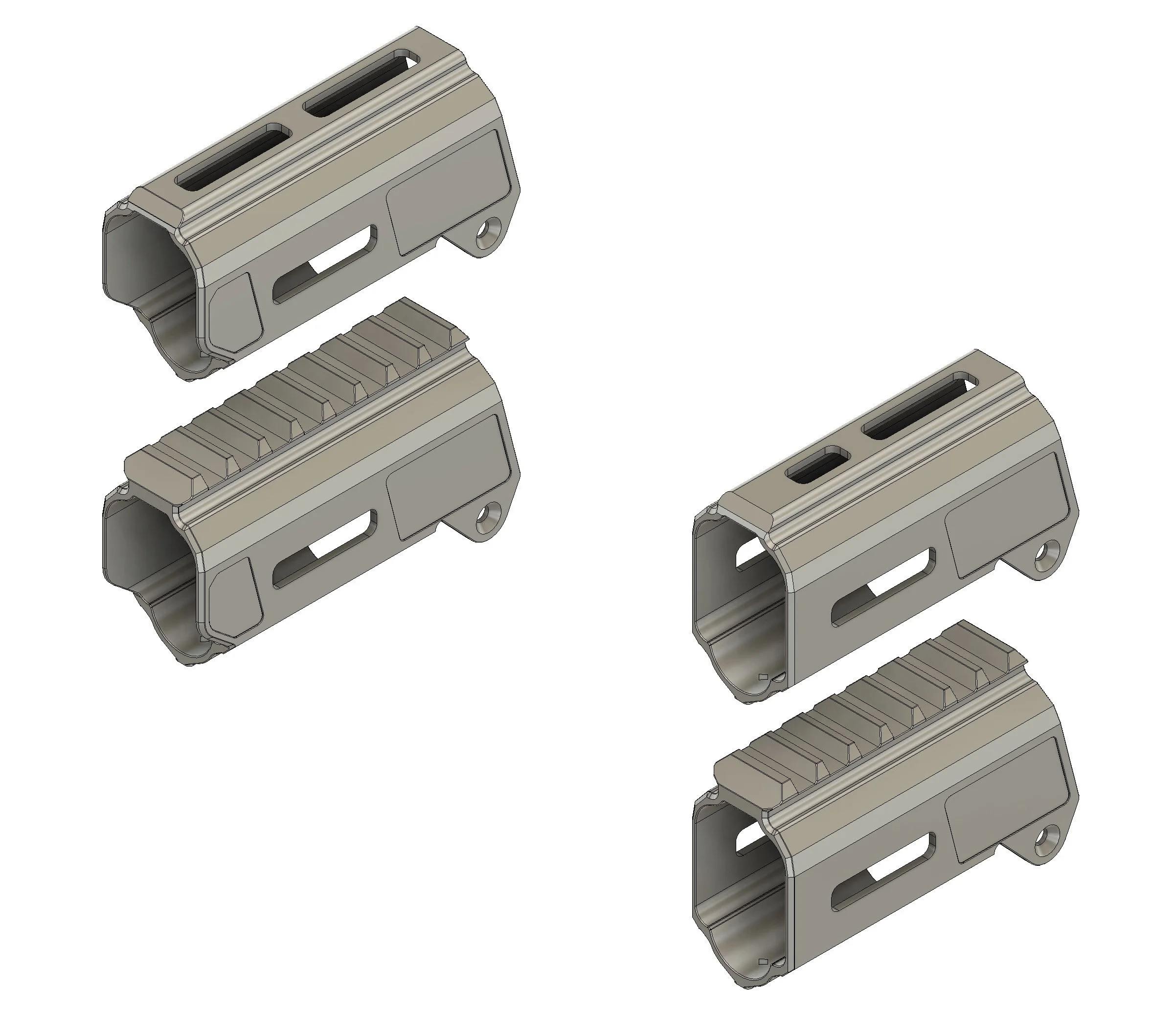

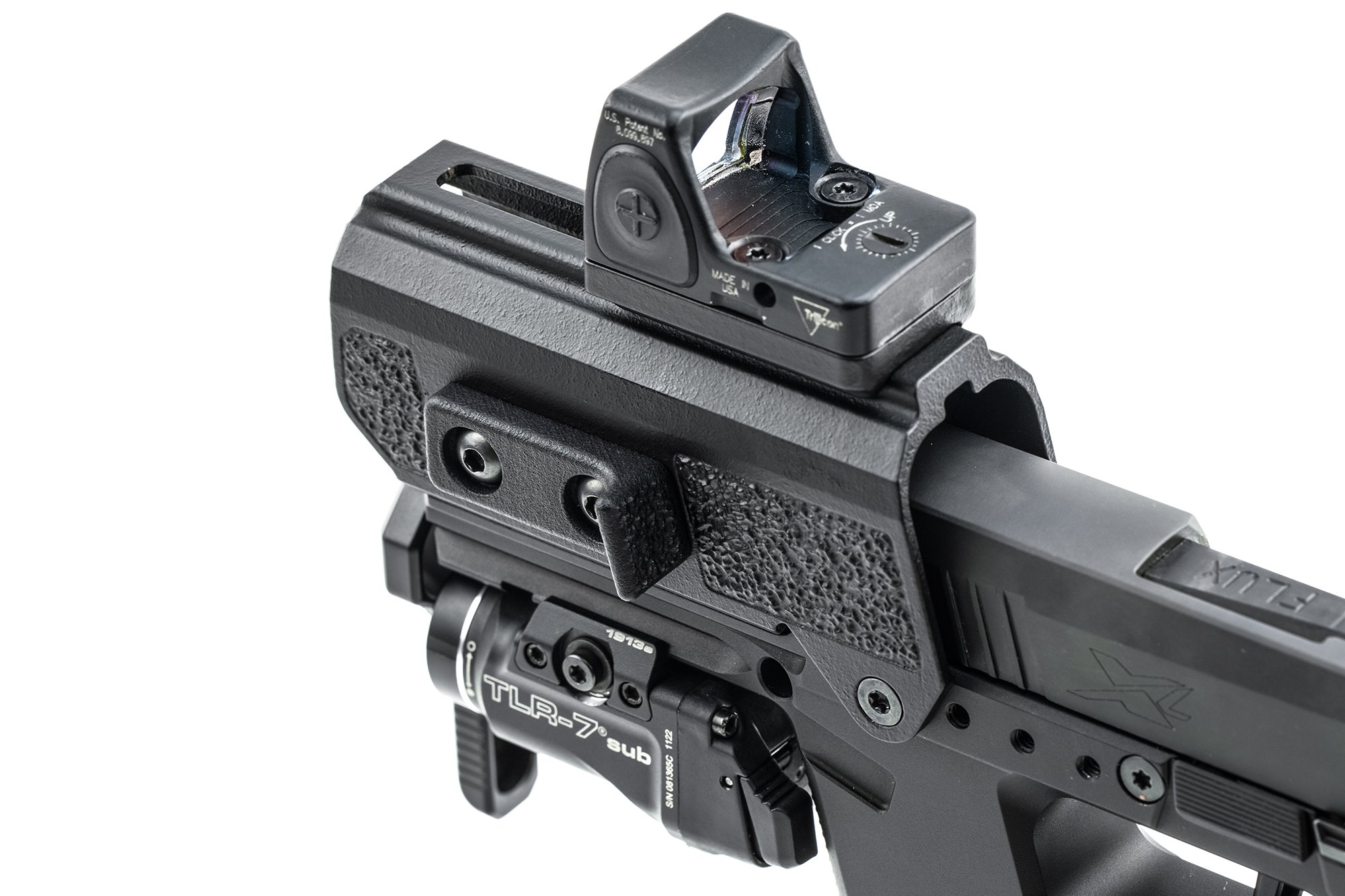

The NEXUS system adds modularity to the Flux Defense Raider 365 and allows adaptability across various types of setups. This mounting system gives you a choice of 1913 picatinny, direct mount or an MLOK pattern mounting system for optics, lights and other accessories, such as the Raider Thumb Rests. Allows for removal of slides through the shroud for tool-free disassembly with no need to re-zero, this applies to all Sig OEM slides, including the FUSE.
Designed and made in the US, A20X Aluminum

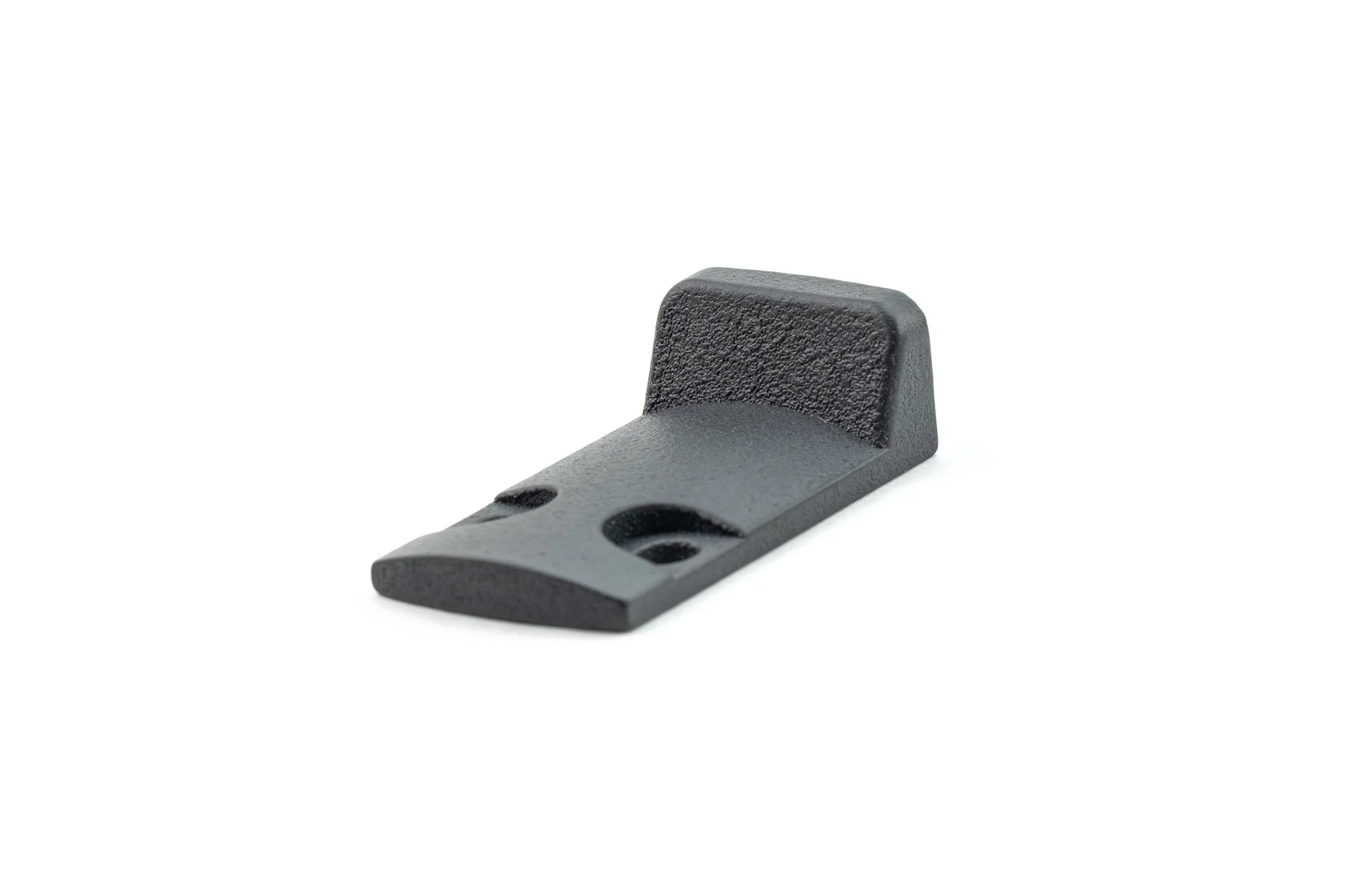

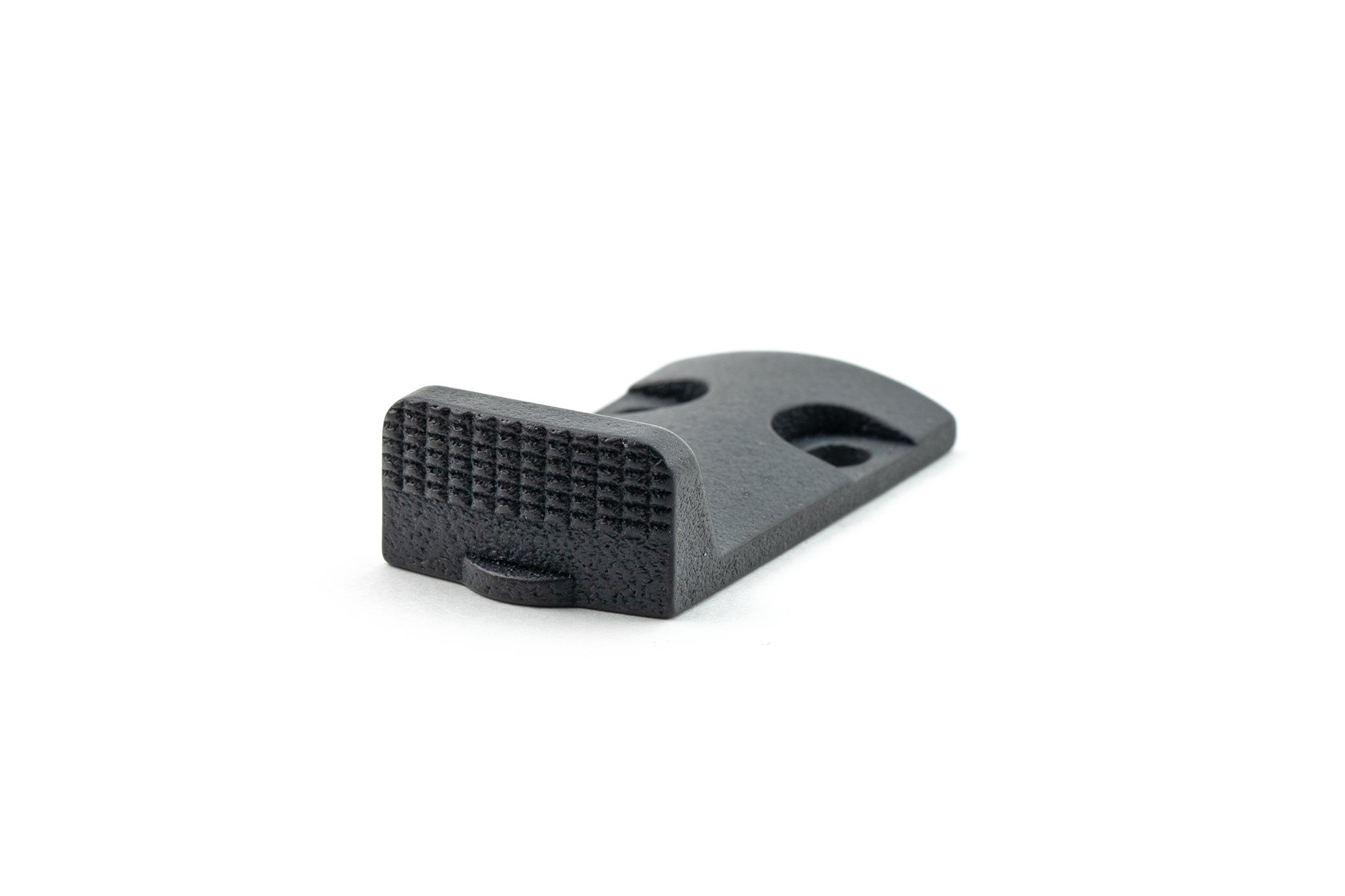

NEXUS is intended as a direct replacement for the OEM shroud for use with the 6” or longer barrels. Allows for tool-free disassembly with Short and Short V models of HELPeRs.

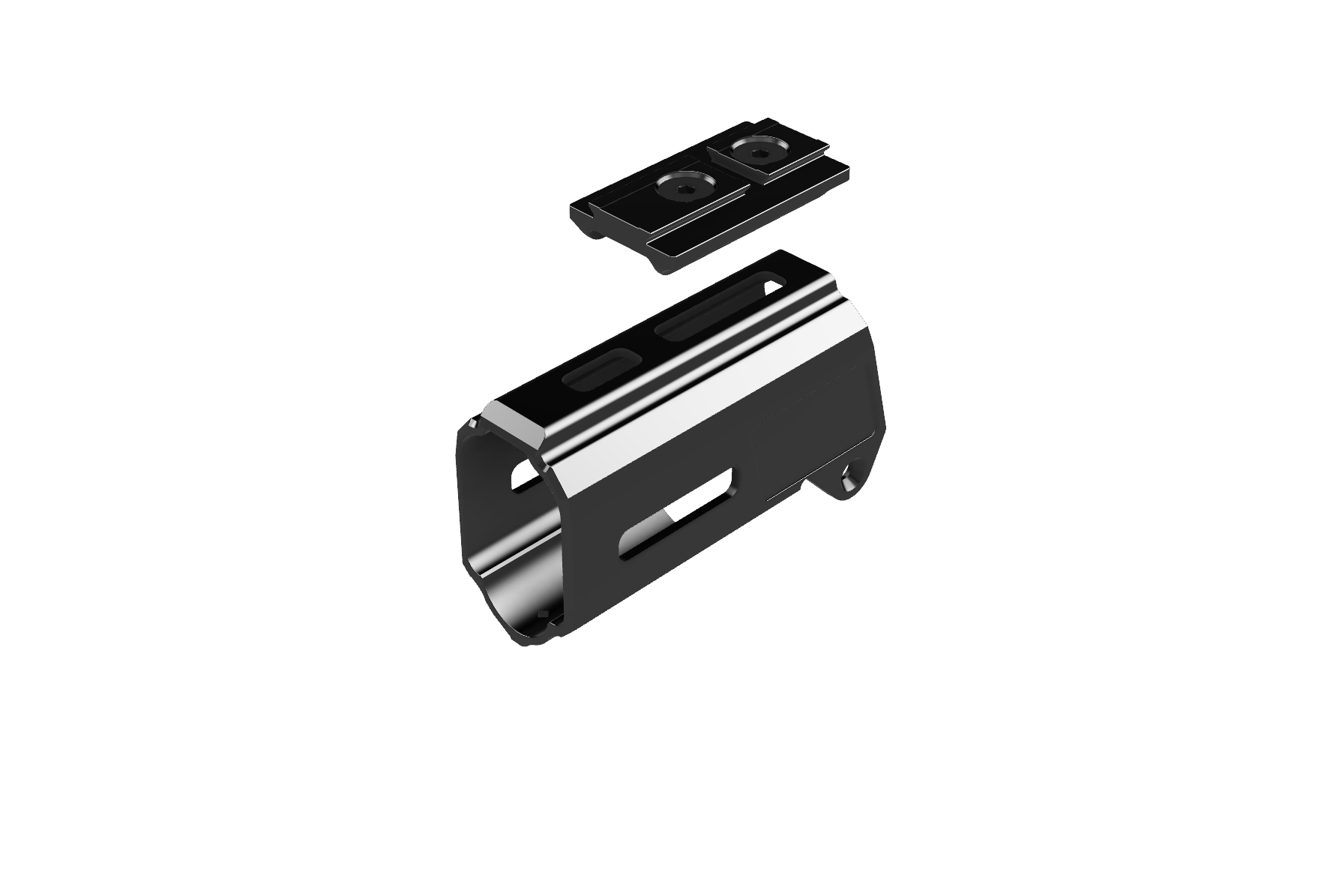

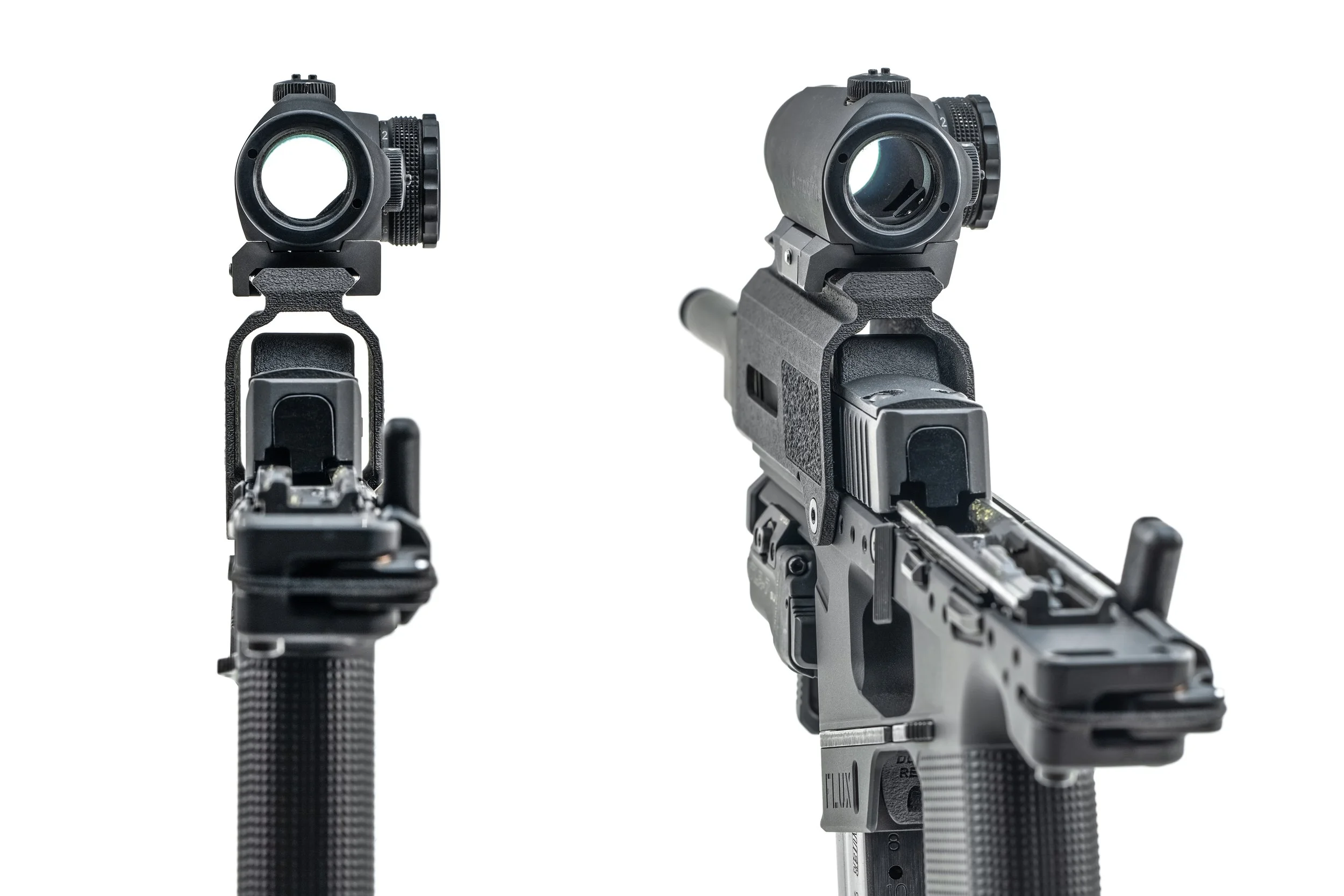

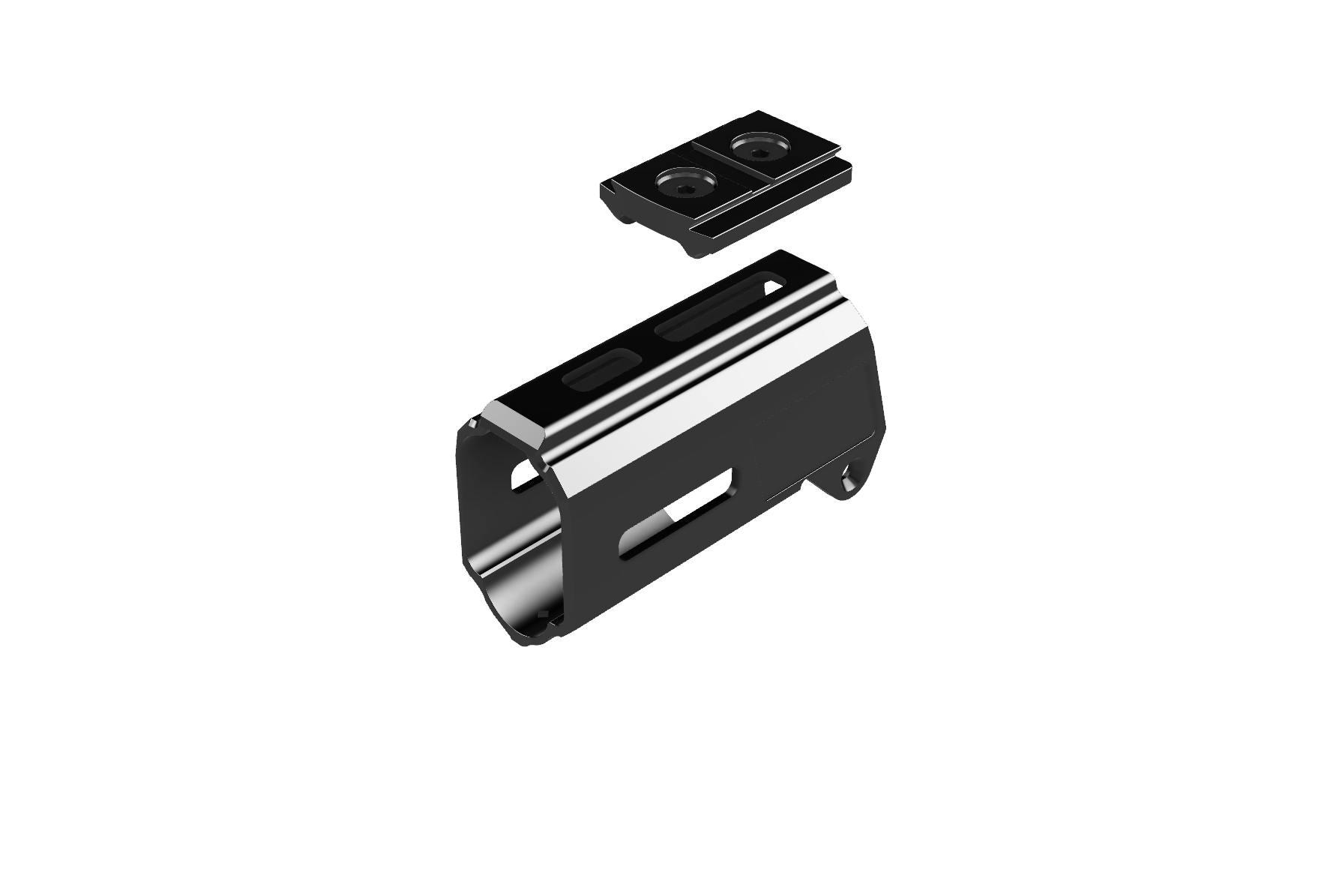

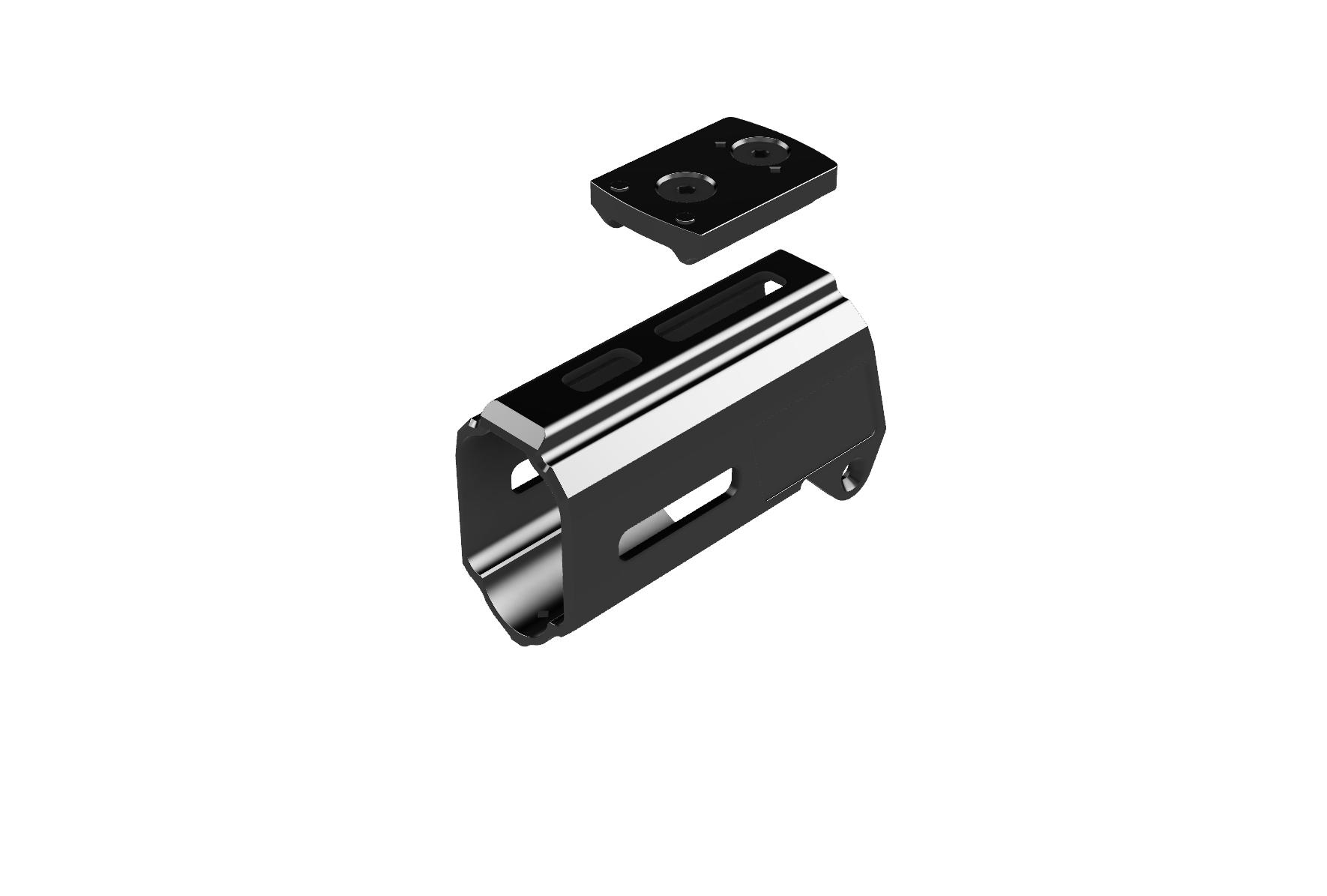

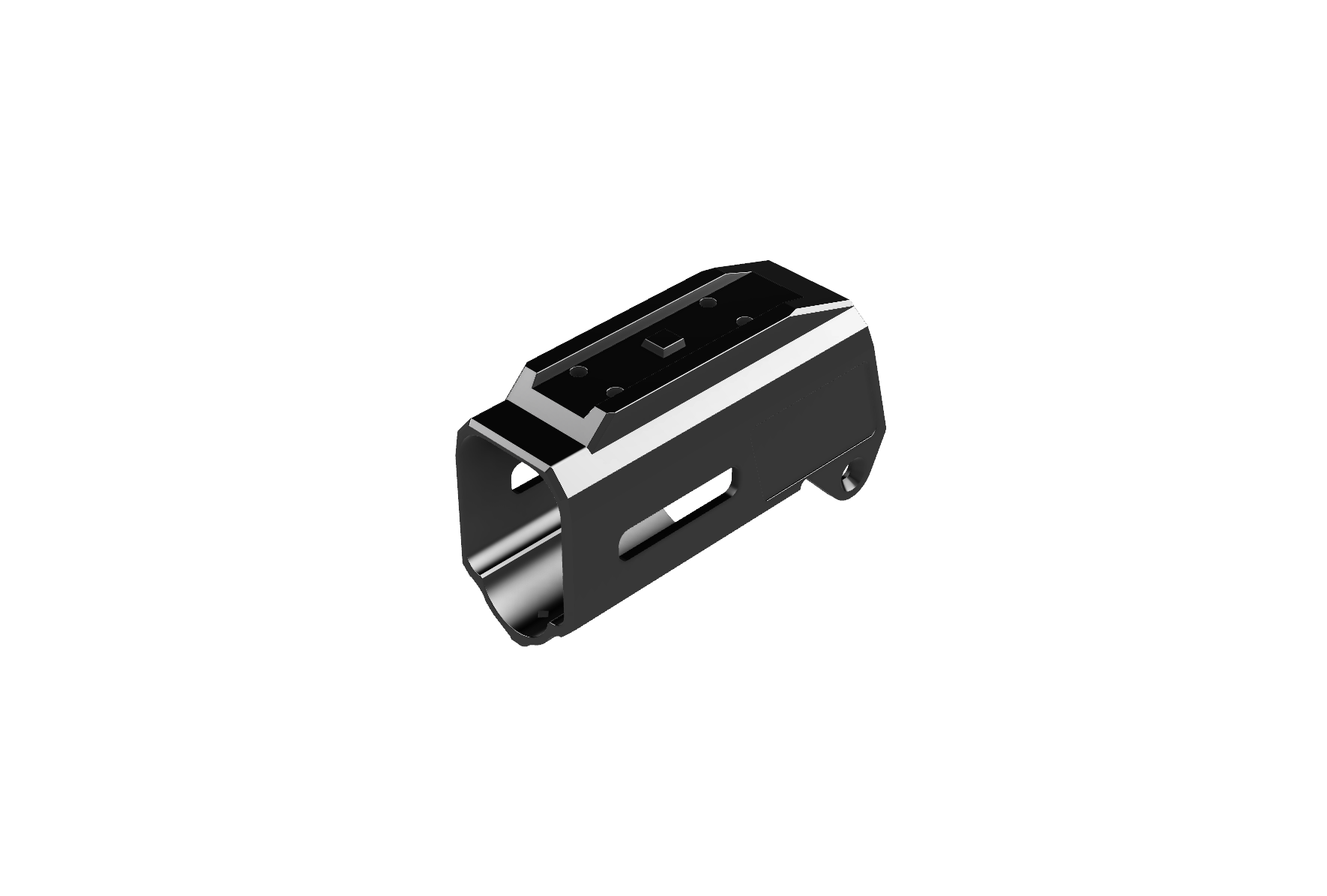

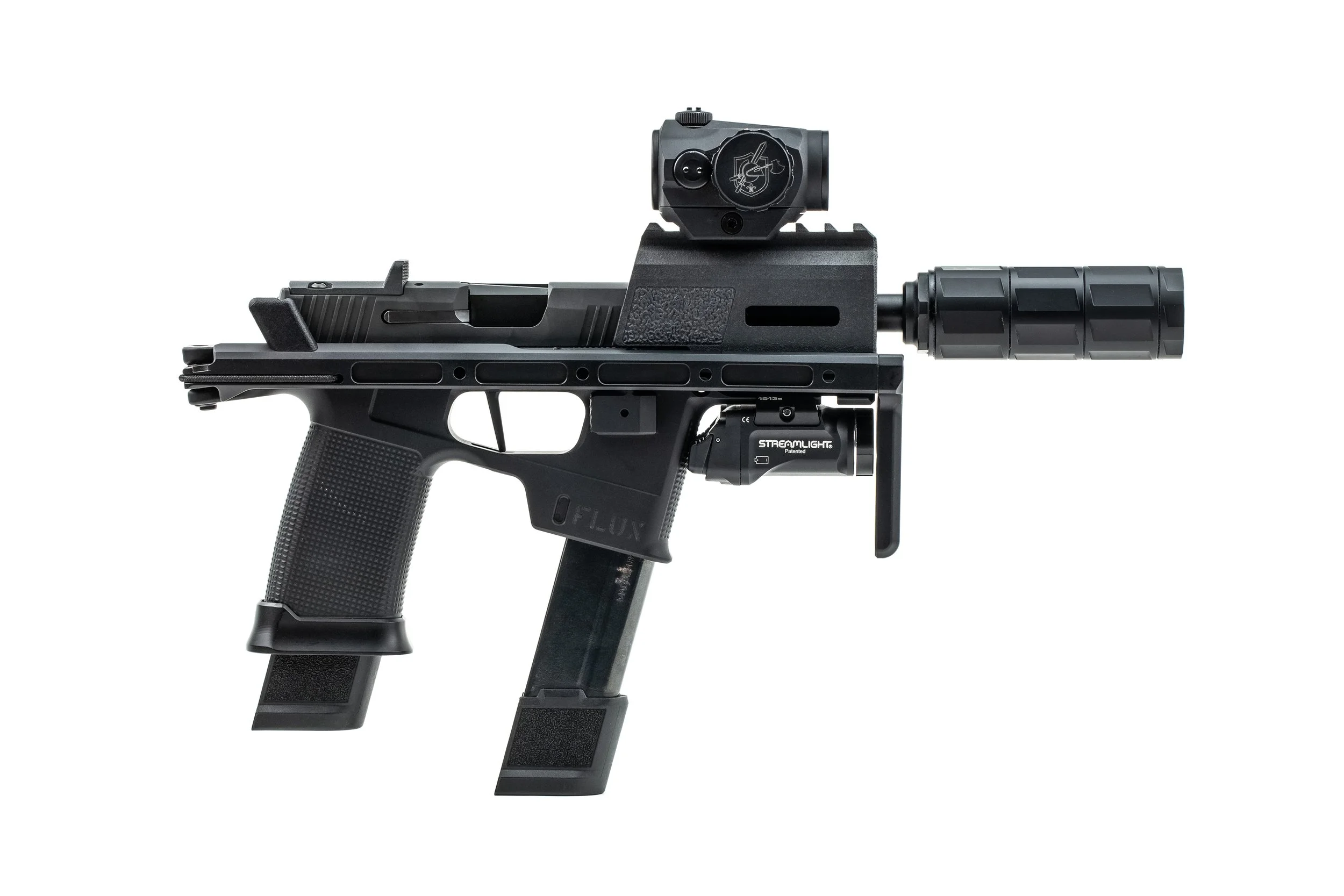

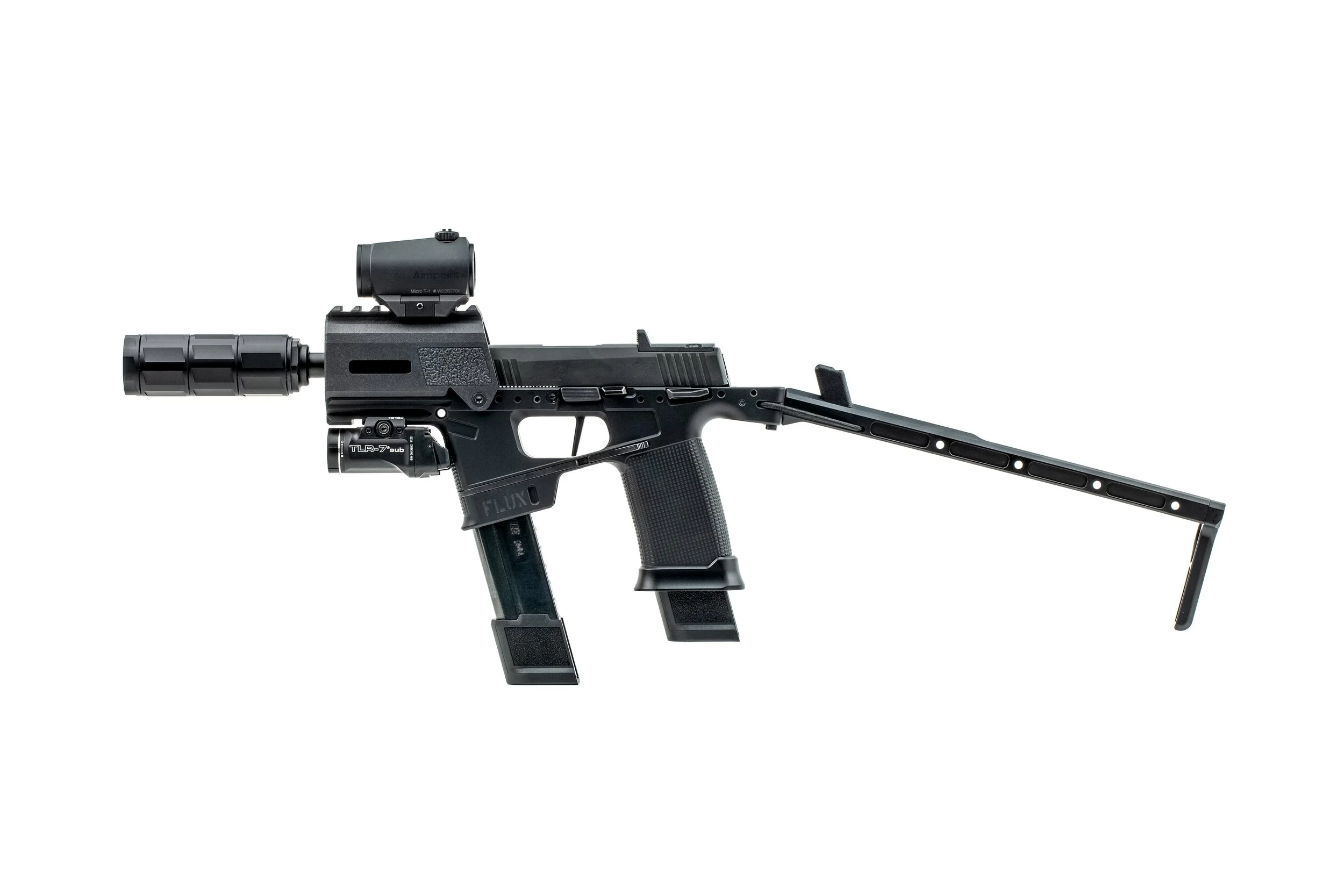

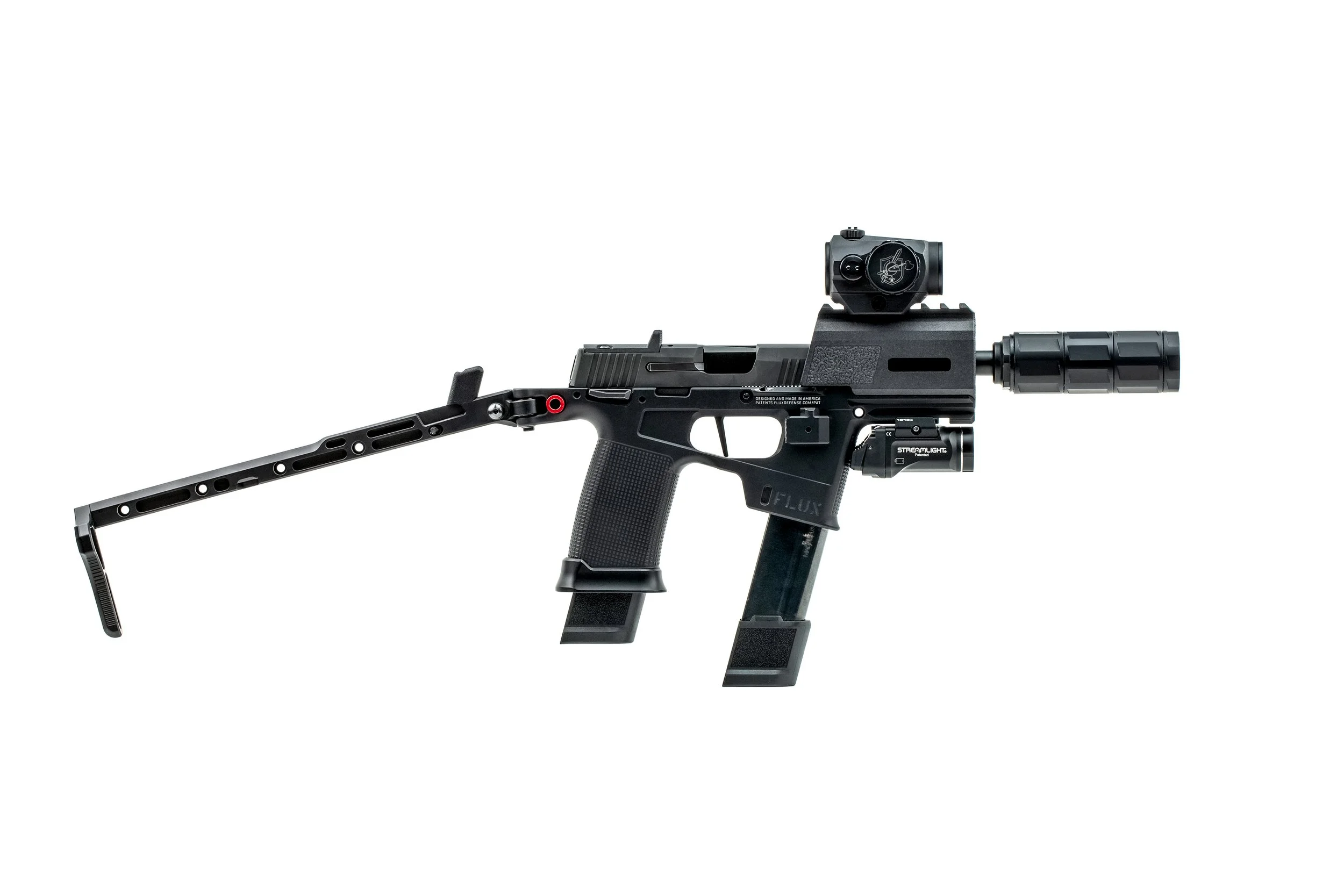

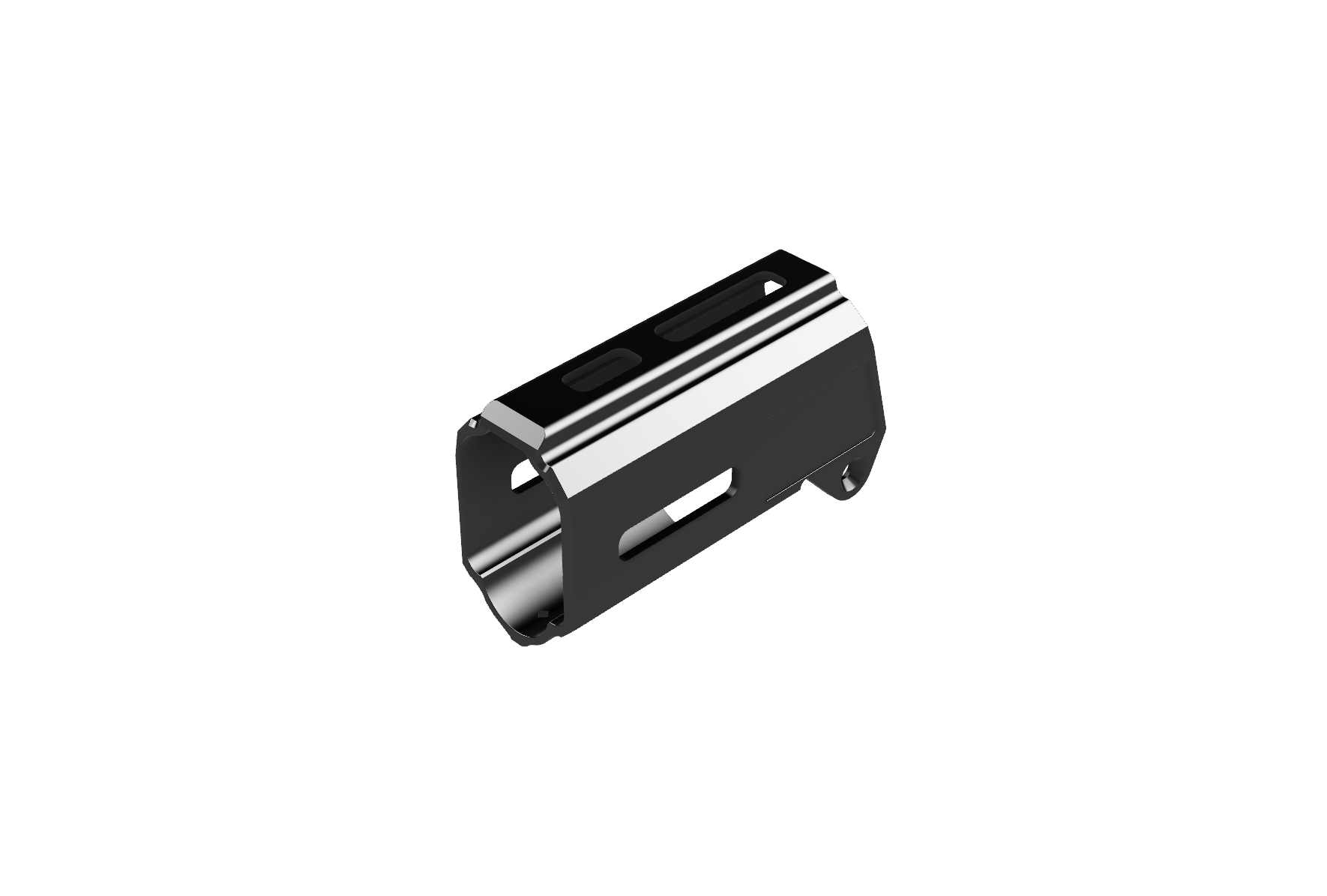

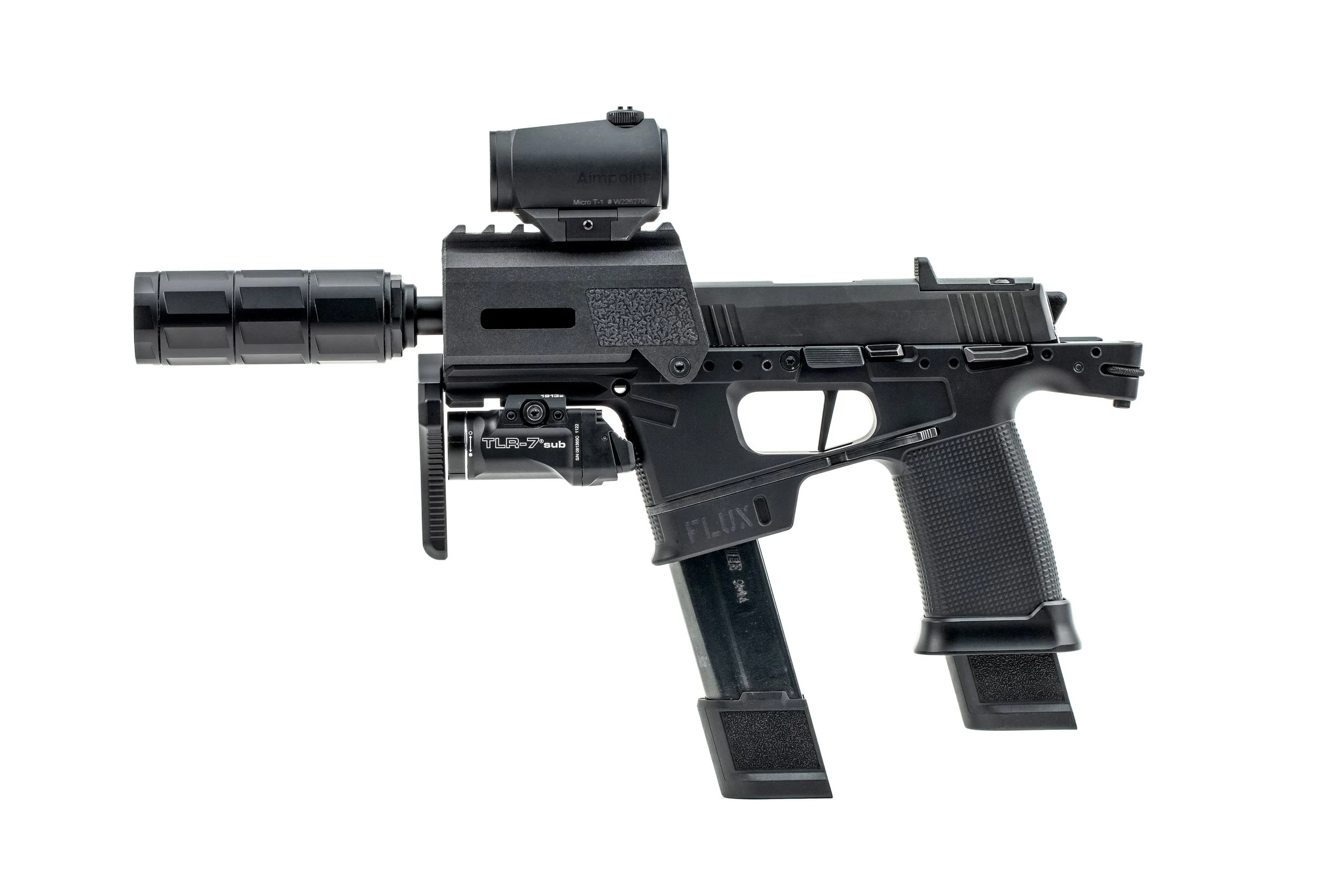

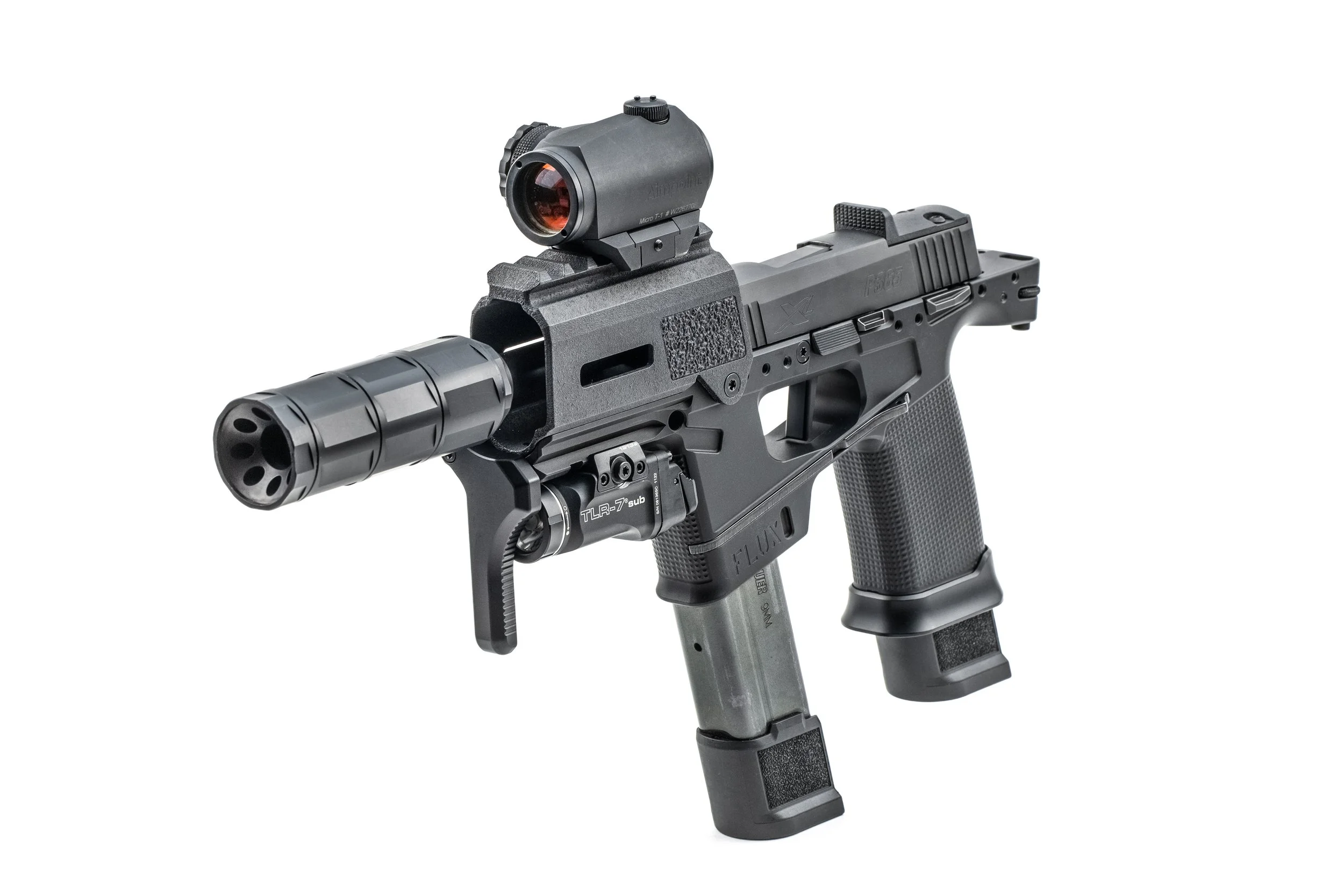

NEXUS K drops the front flare of the shroud to increase compatibility with most suppressors when paired with a 6.50” threaded barrel. Being shorter overall this model also reduces the top MLOK slots from 2 to 1.5, but maintains full compatibility within the NEXUS ecosystem. Allows for tool-free disassembly with Short and Short V models of HELPeRs.

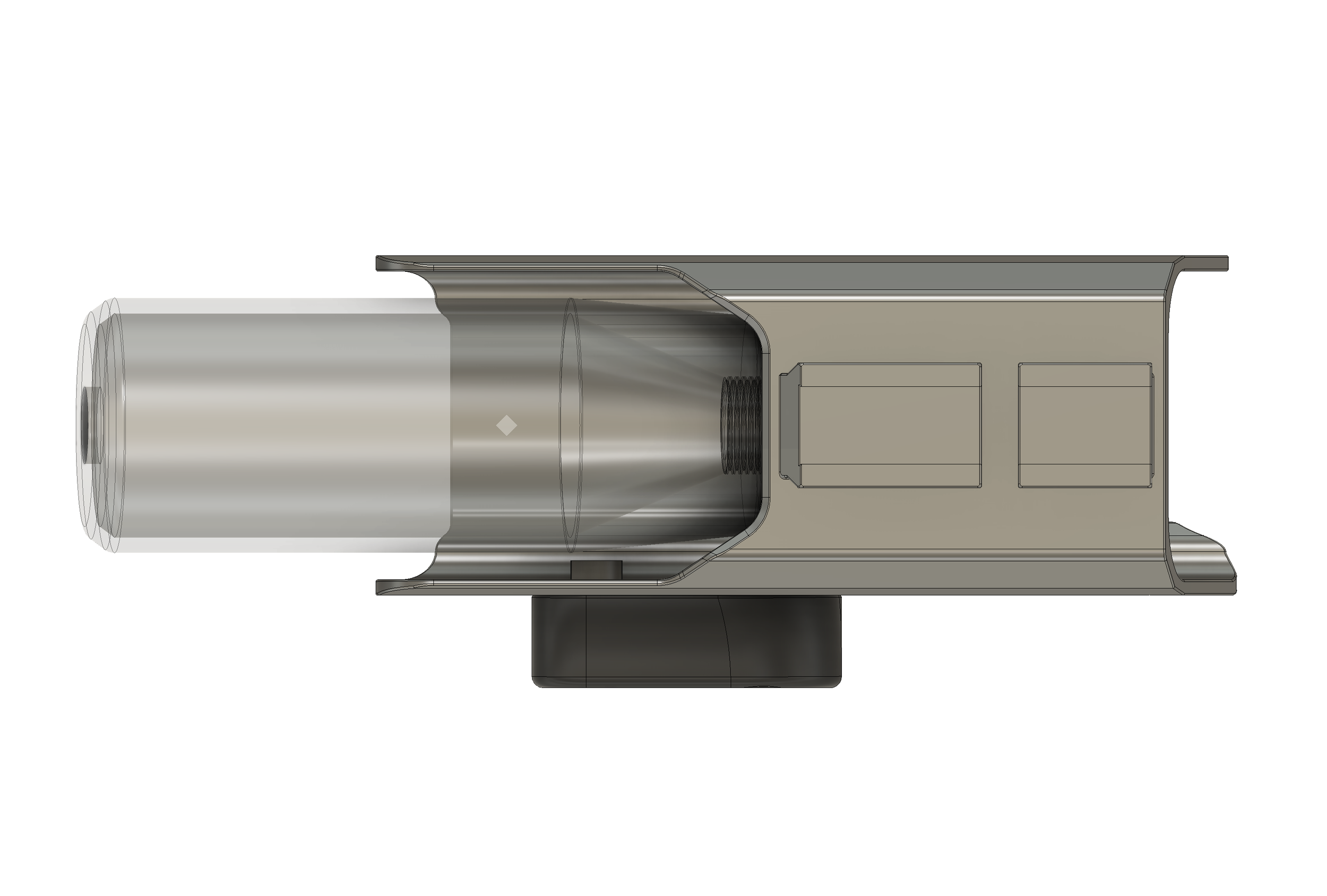

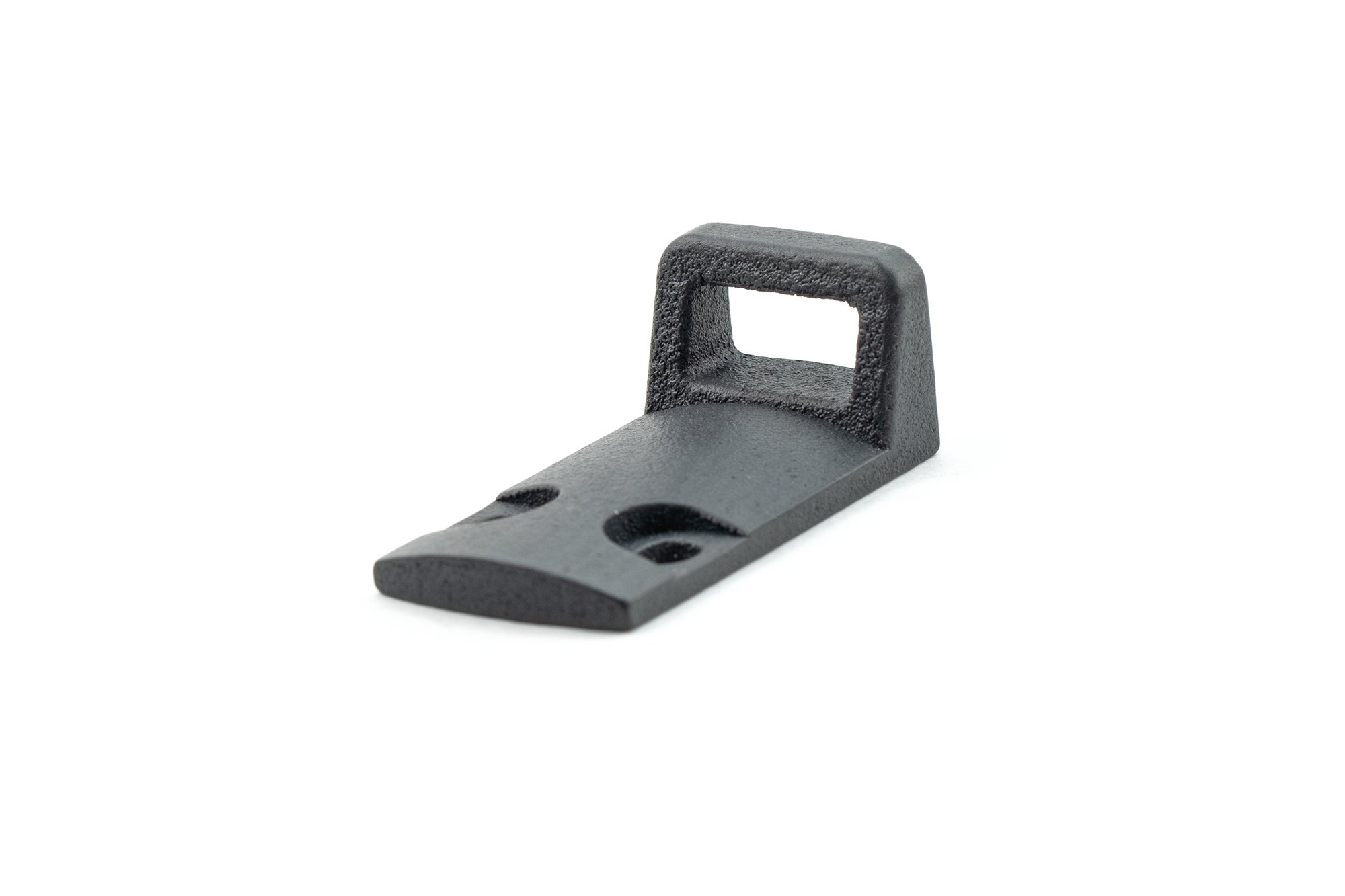

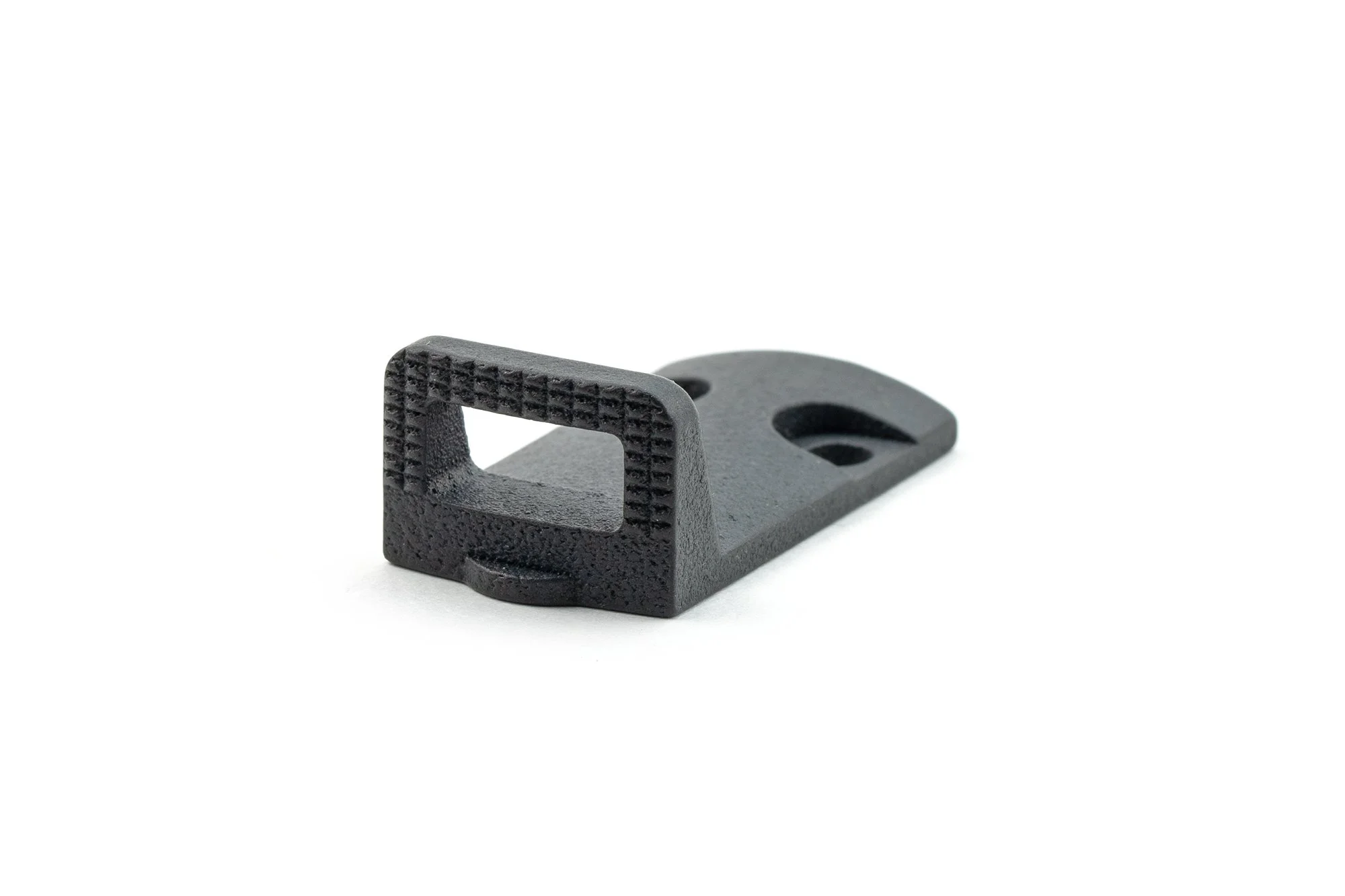

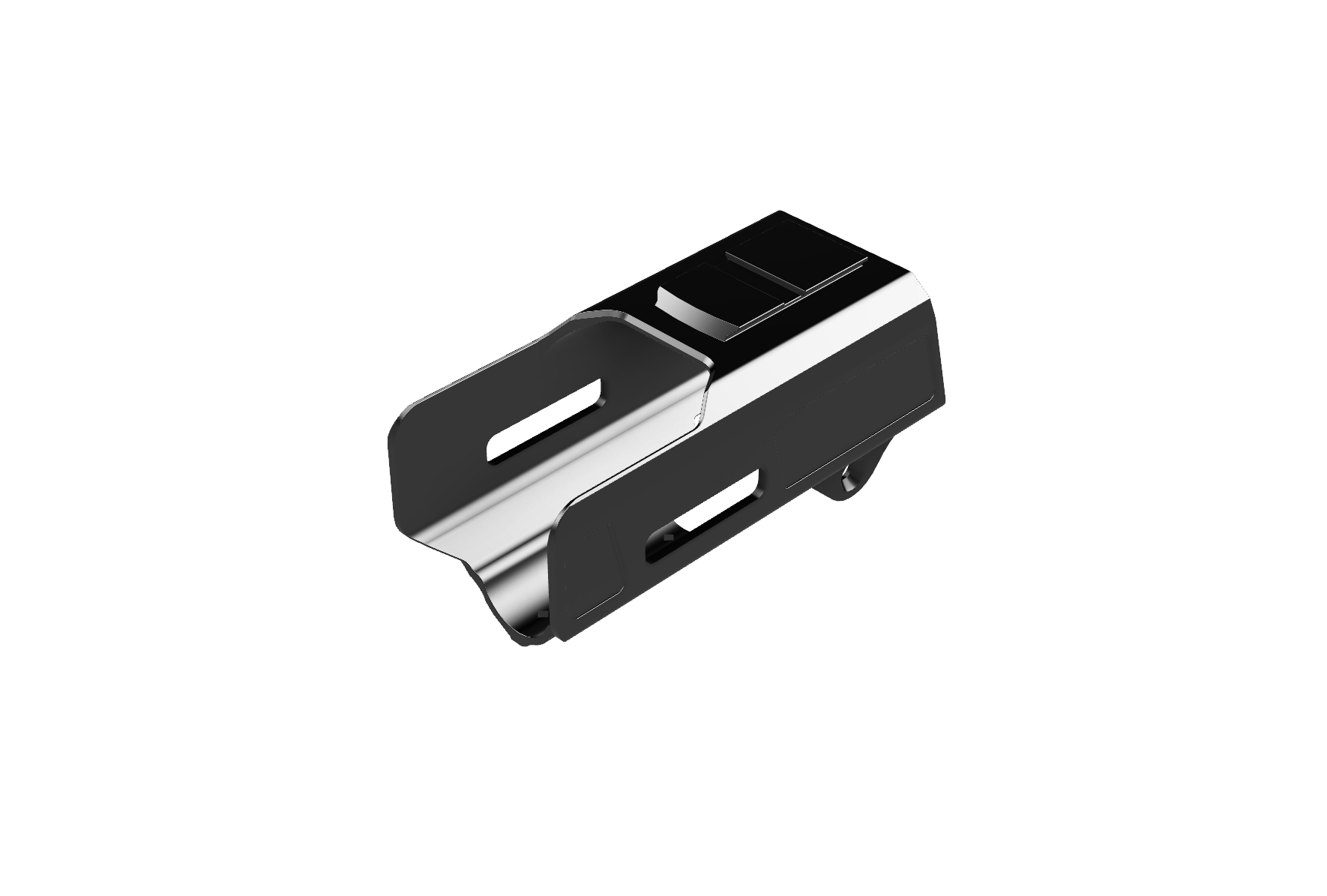

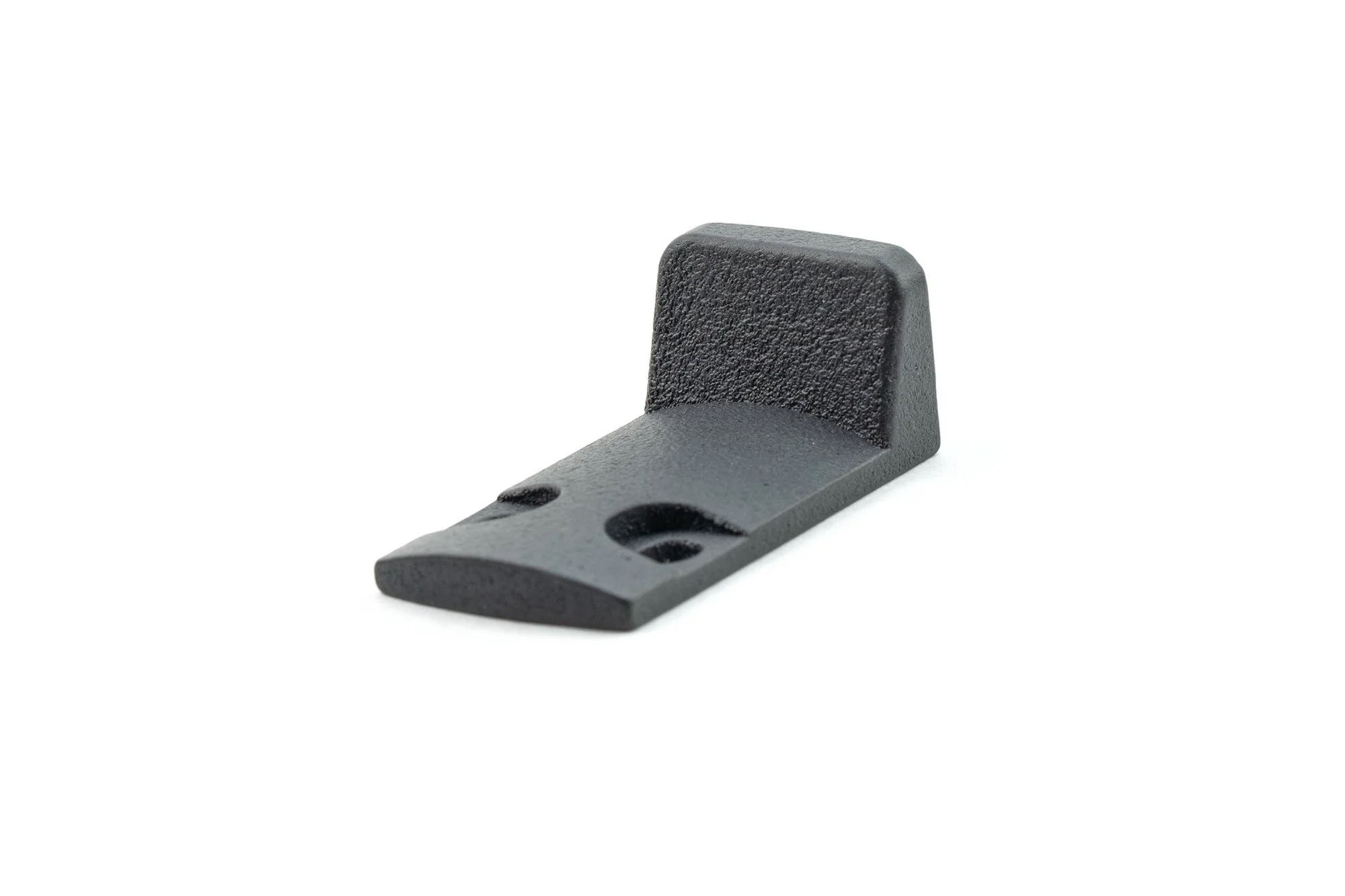

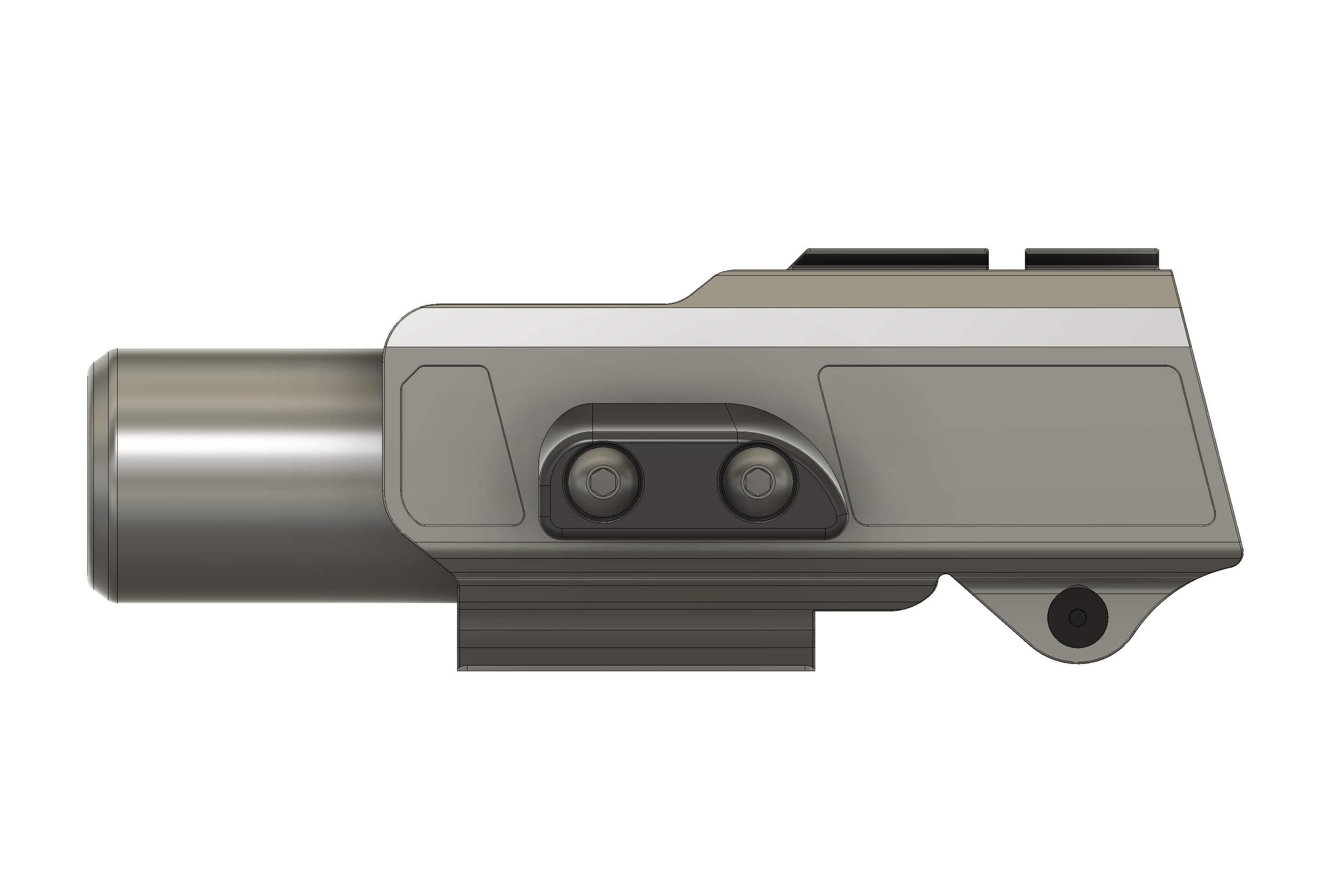

NEXUS SD allows for nesting a suppressor ~1.35” OD or less when using the P365 XL or FUSE slide barrel. Allows for tool-free disassembly with all models of HELPeRs including the Tall and Tall Portal.

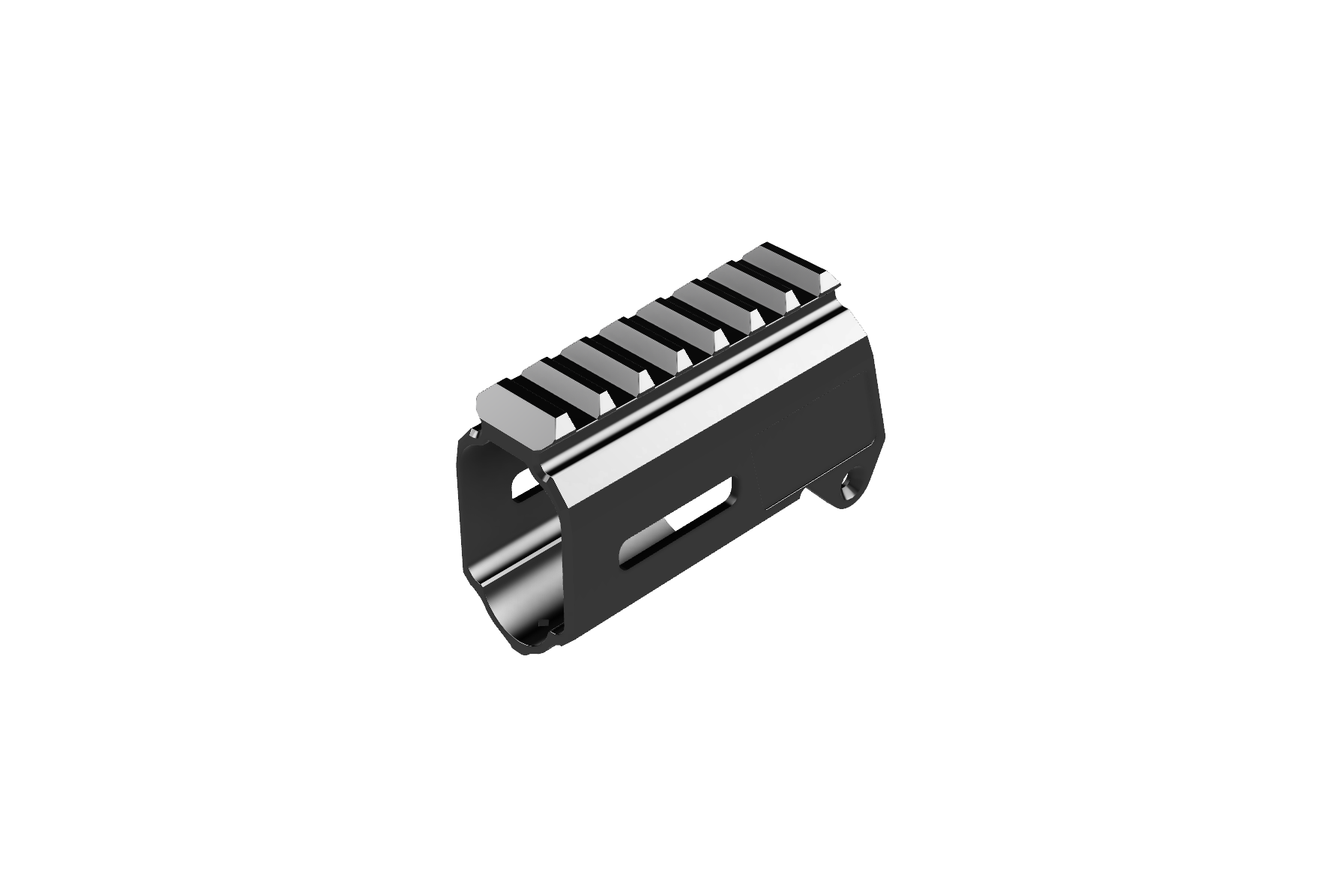

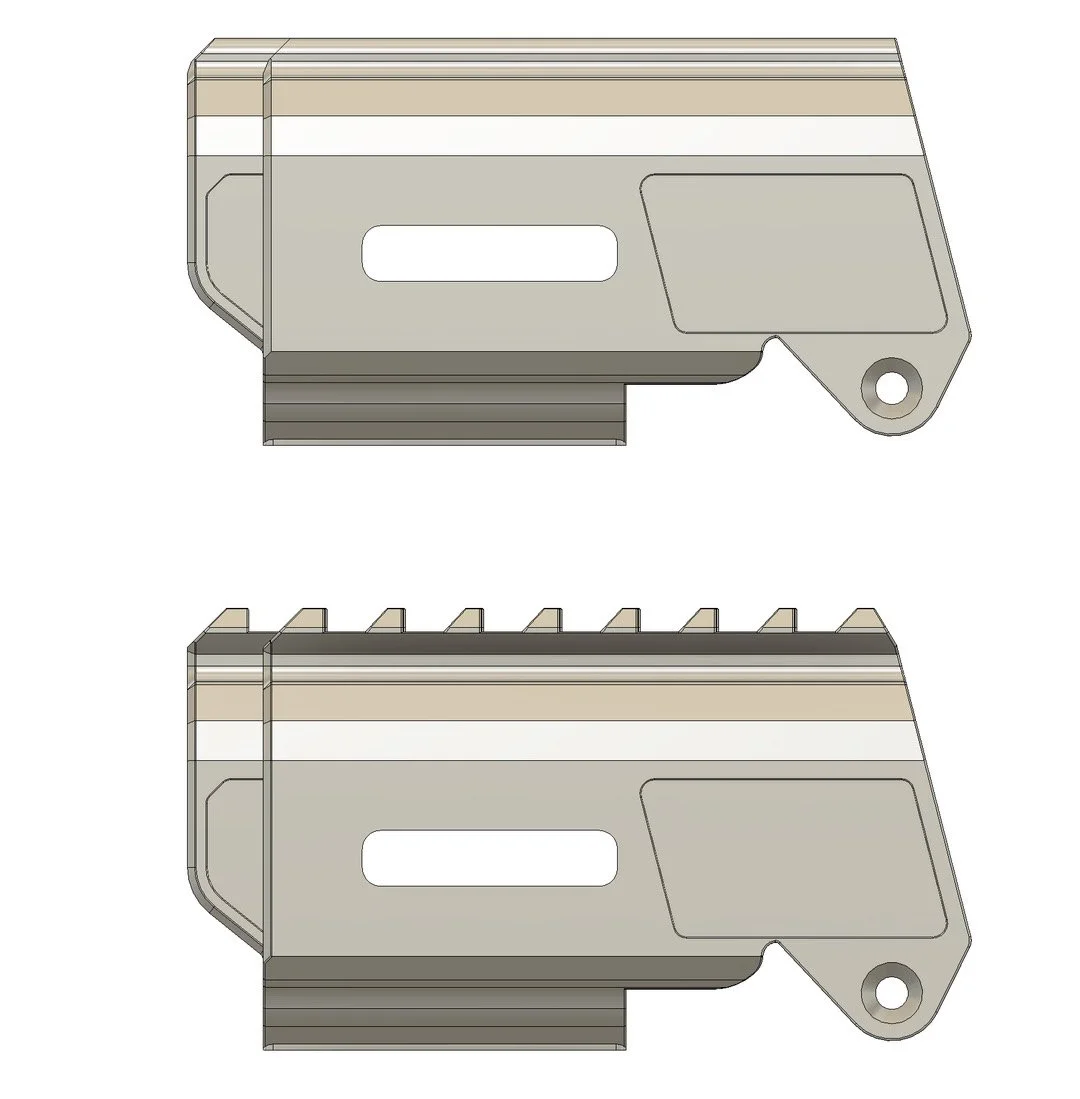

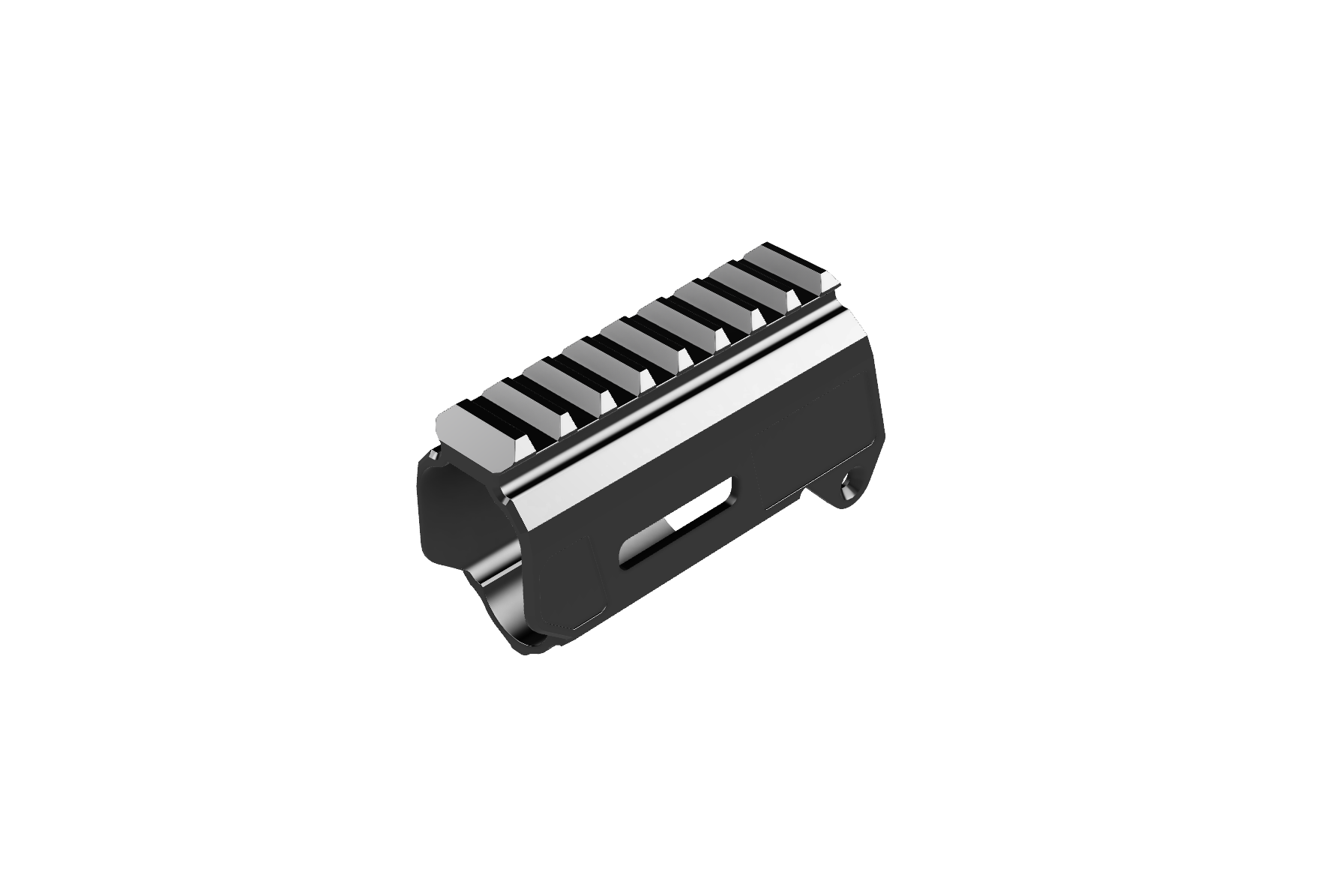

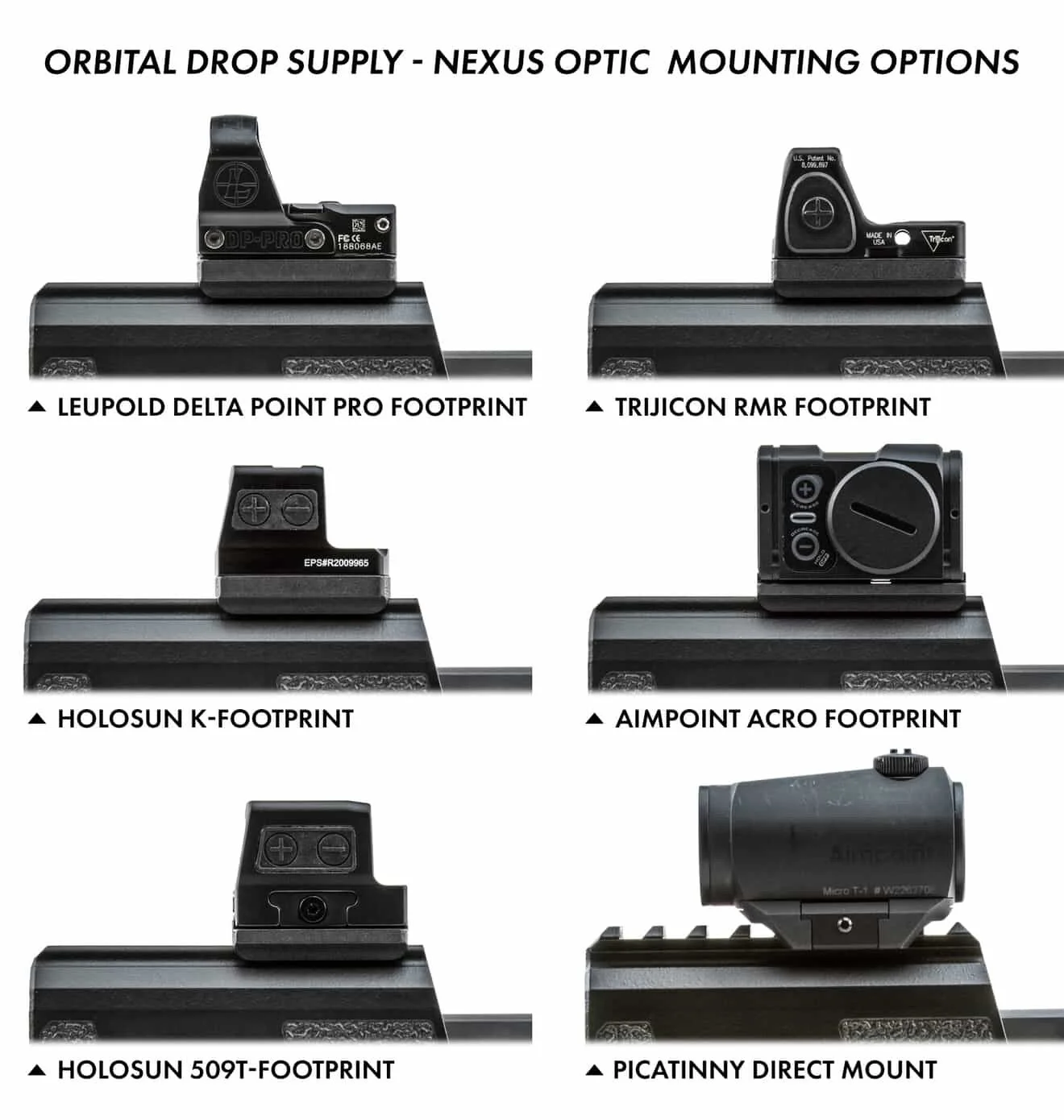

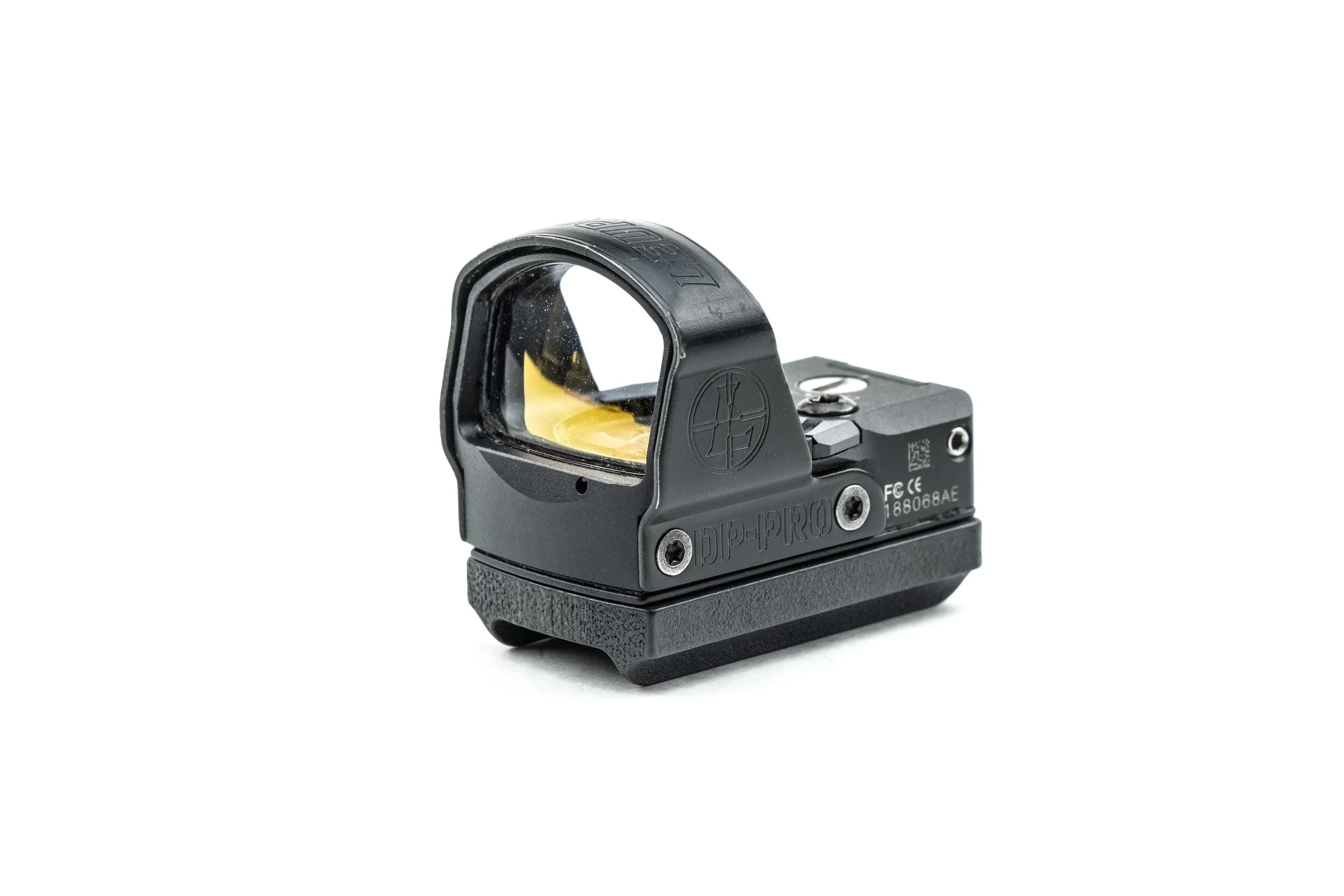

1913 - Compatible with any standard picatinny style optic mount, multiple positions, tallest optic height.

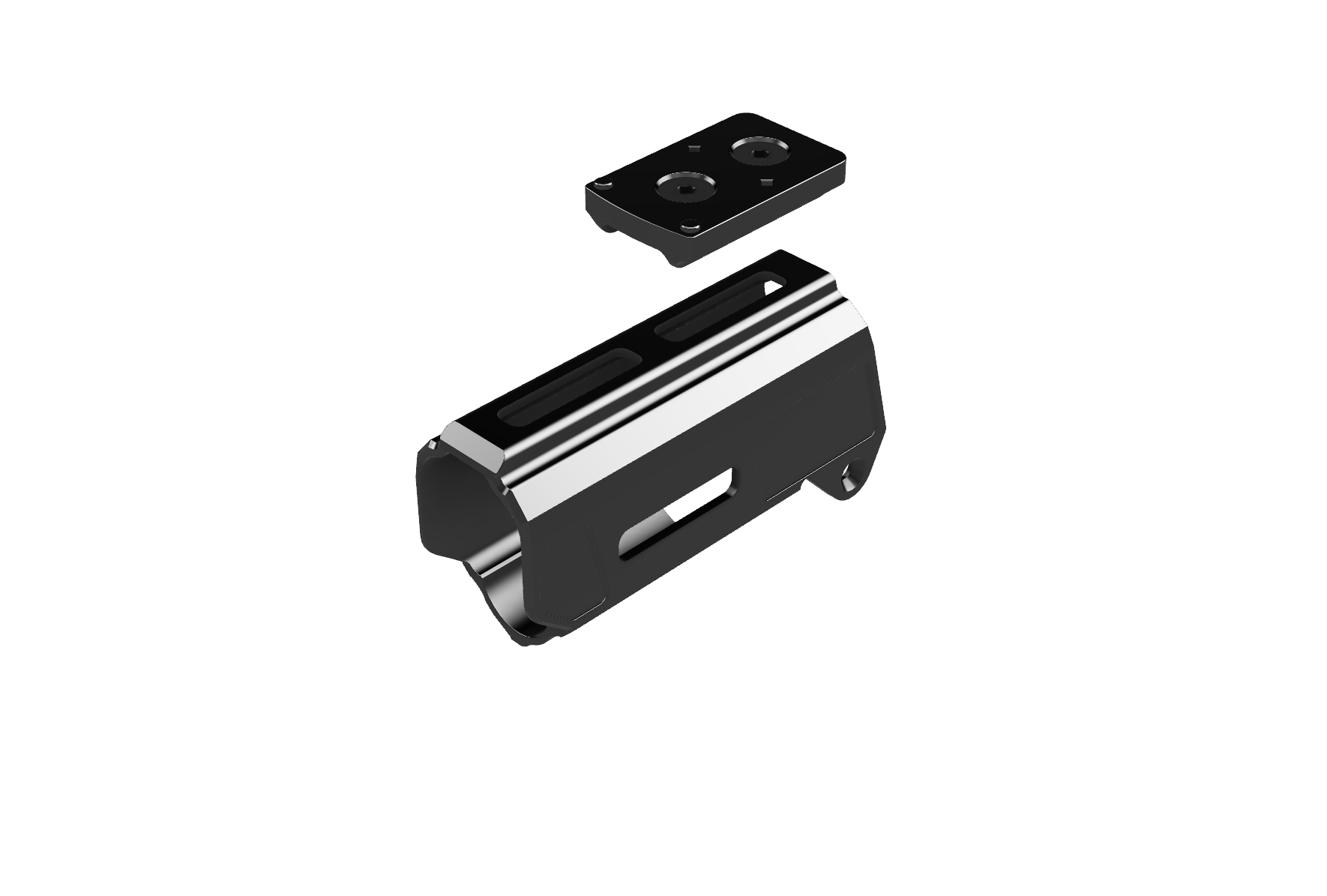

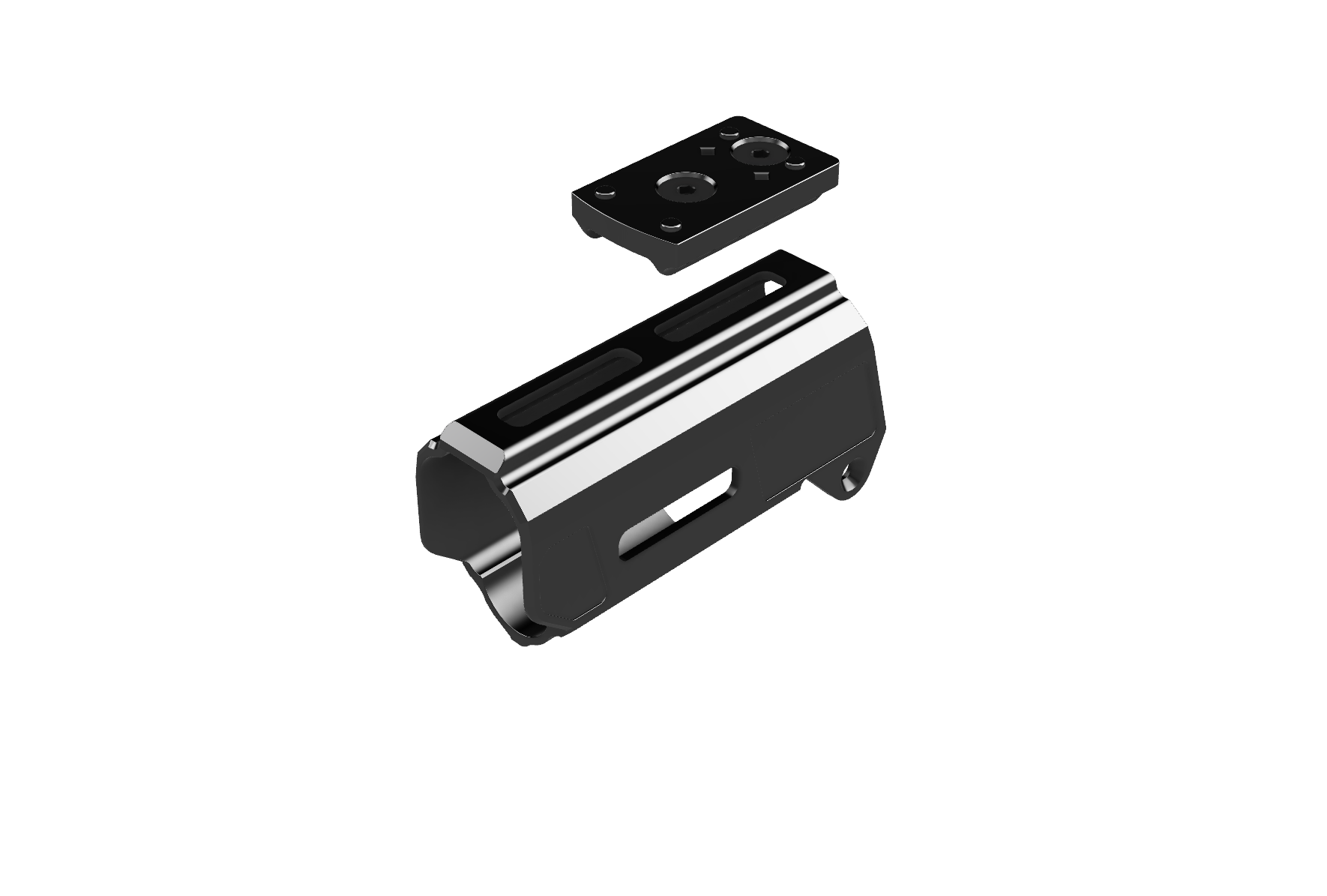

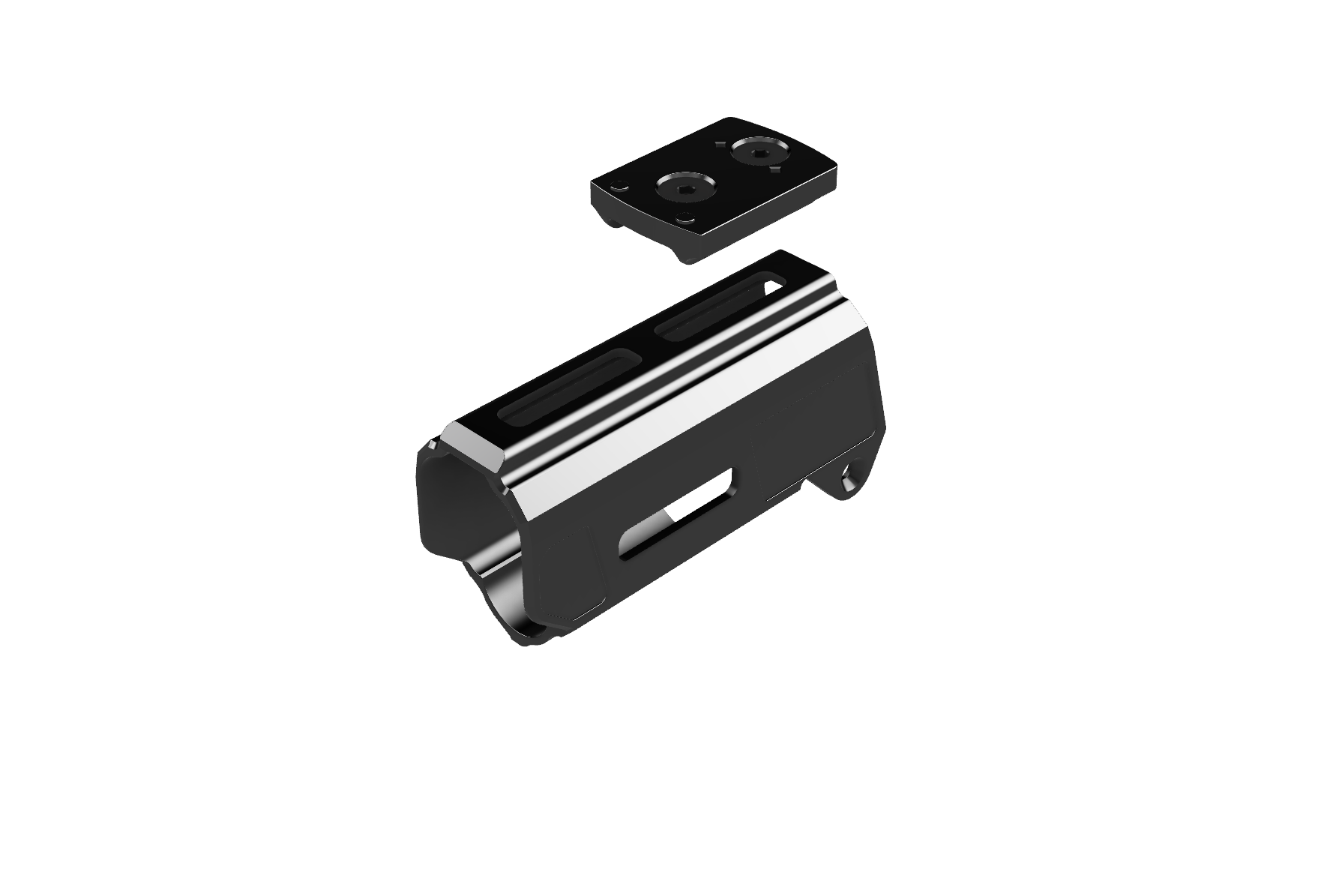

MLOK - Modular, multiple mounting locations, 3 (NEXUS) / 2 (NEXUS K), ability to swap footprint with additional NEXUS Plates.

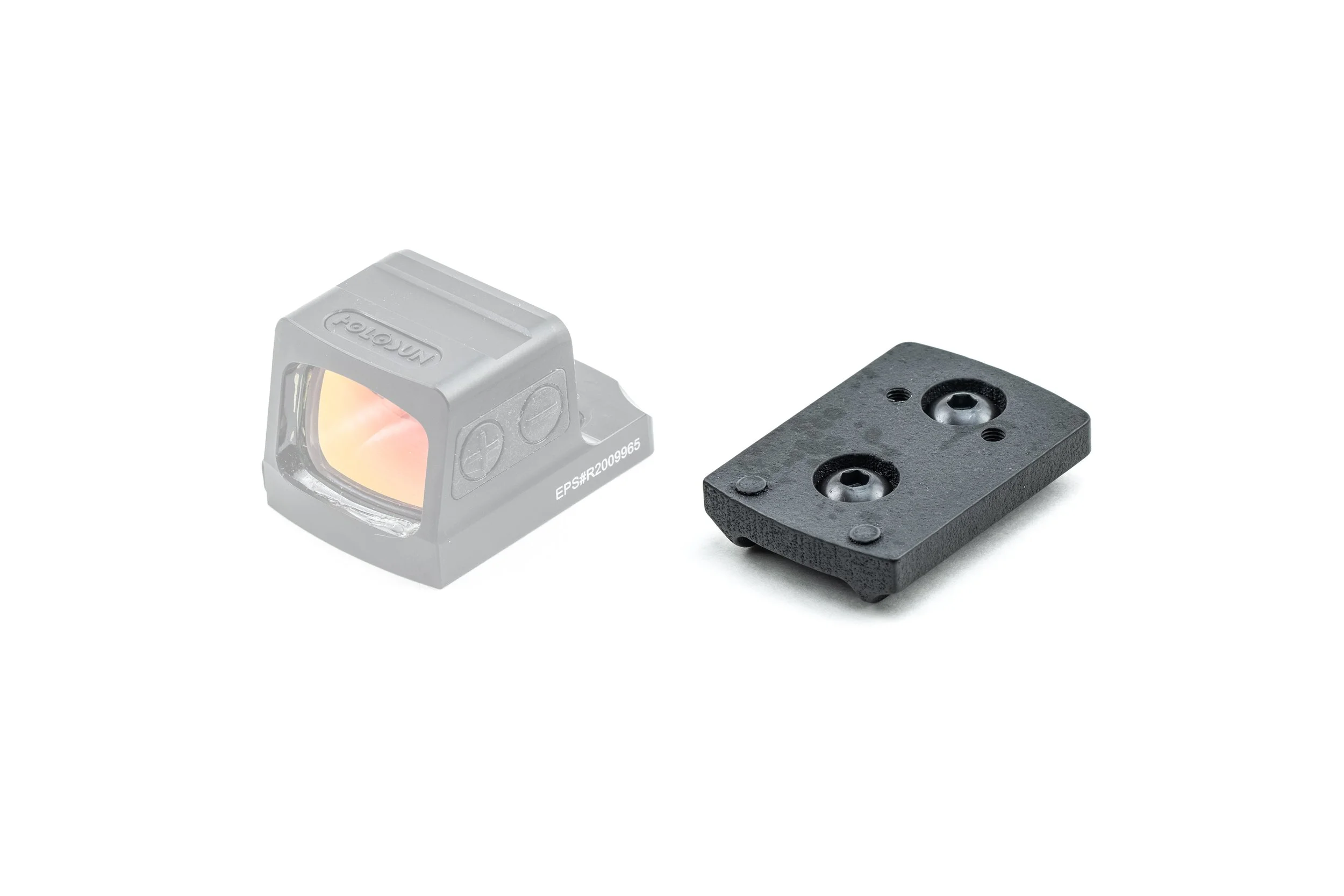

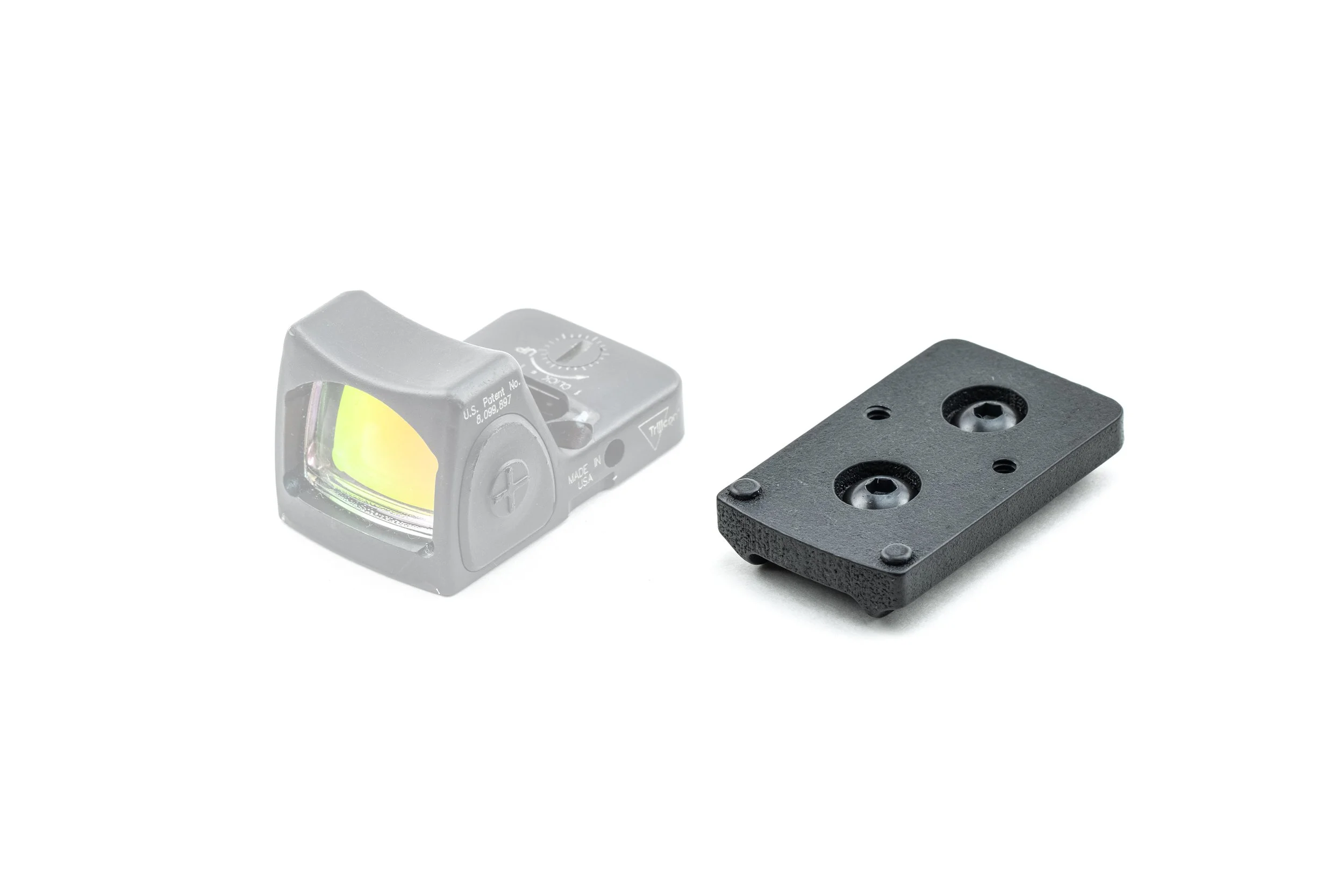

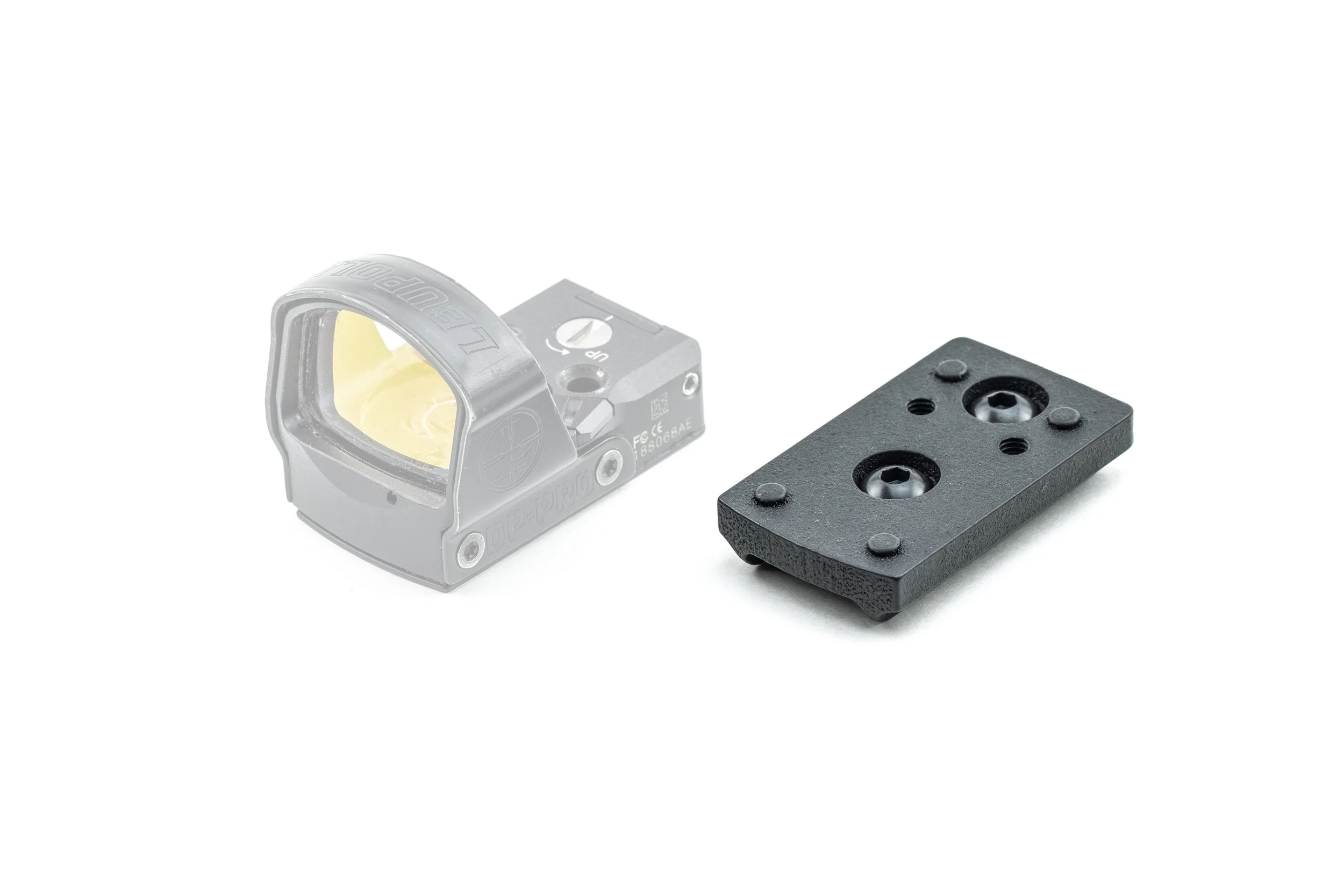

NEXUS Plates - (2) 10-24 screws and (2) MLOK T-Nuts — suggested max torque value for installation on NEXUS 25 in-lbs, suggested optic max torque value 15 in-lbs.

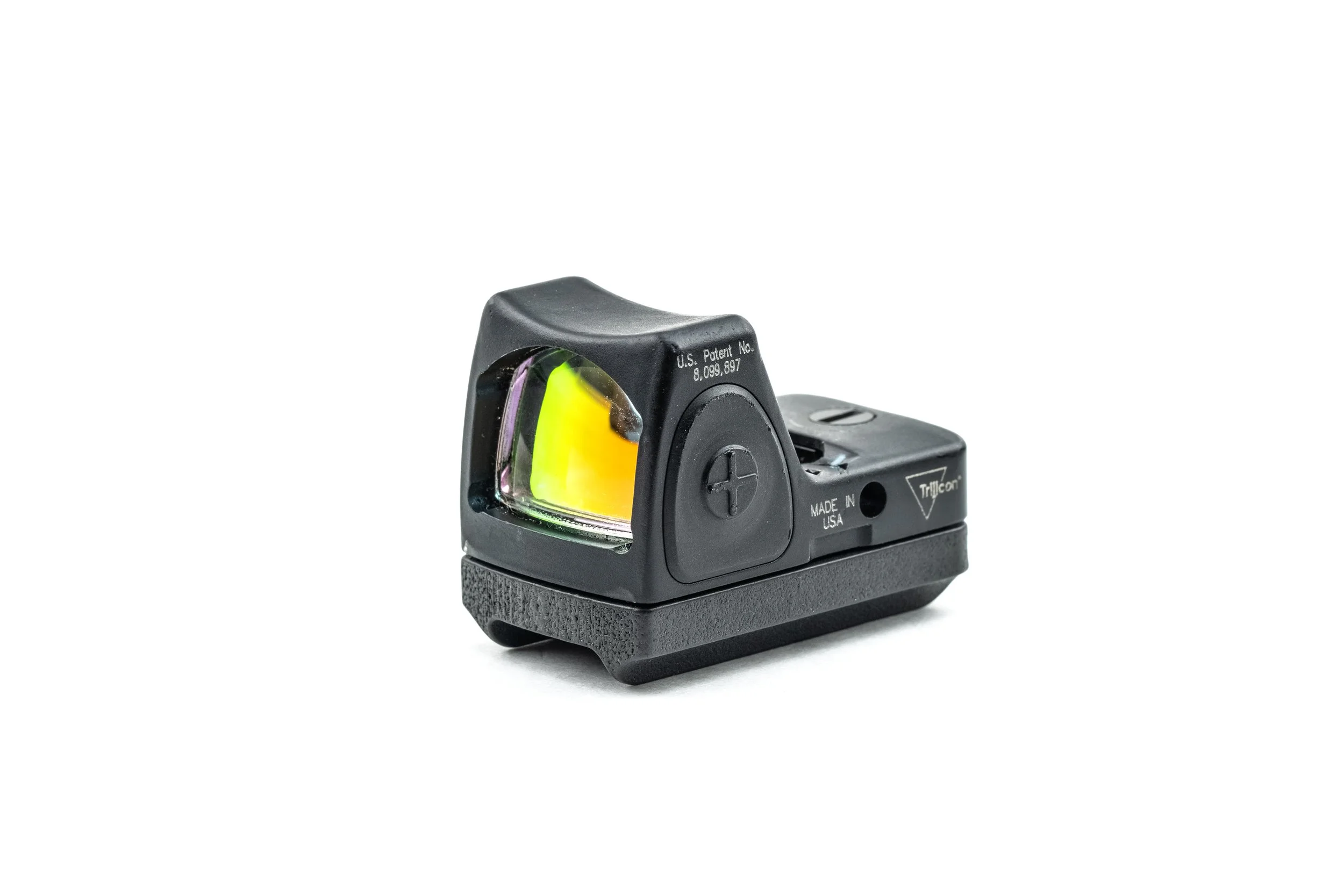

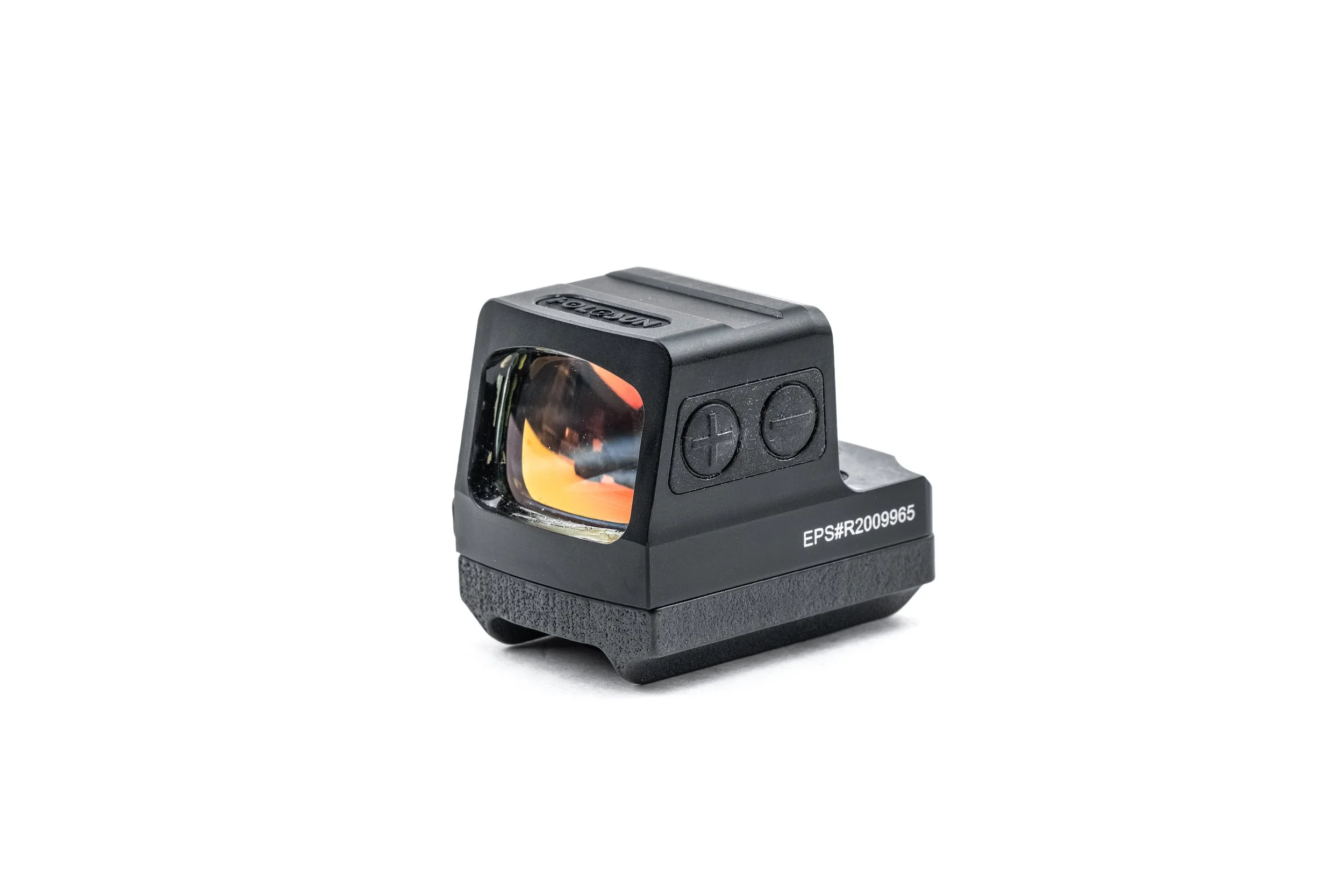

Direct Mount - Lowest optic height, fixed position.

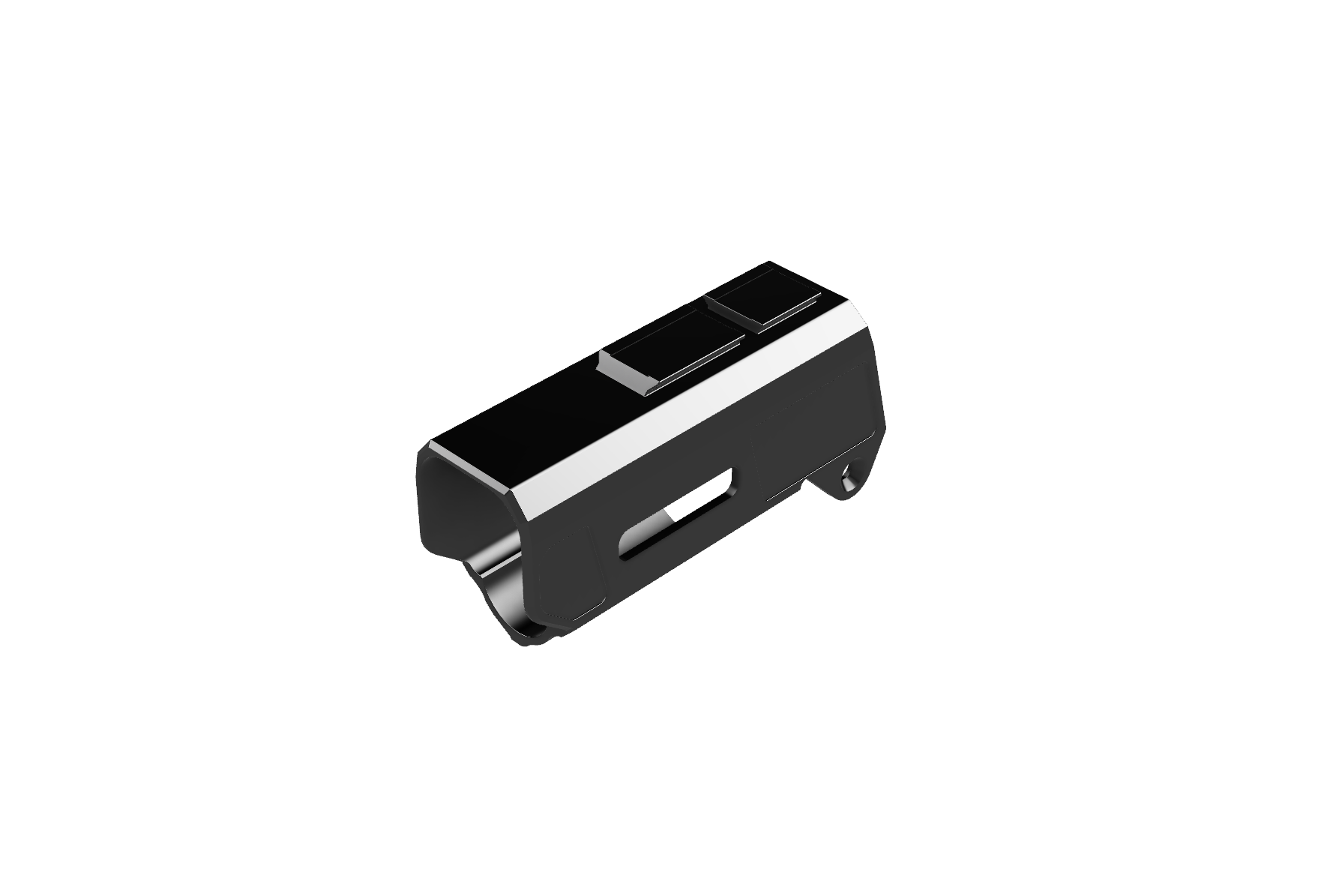

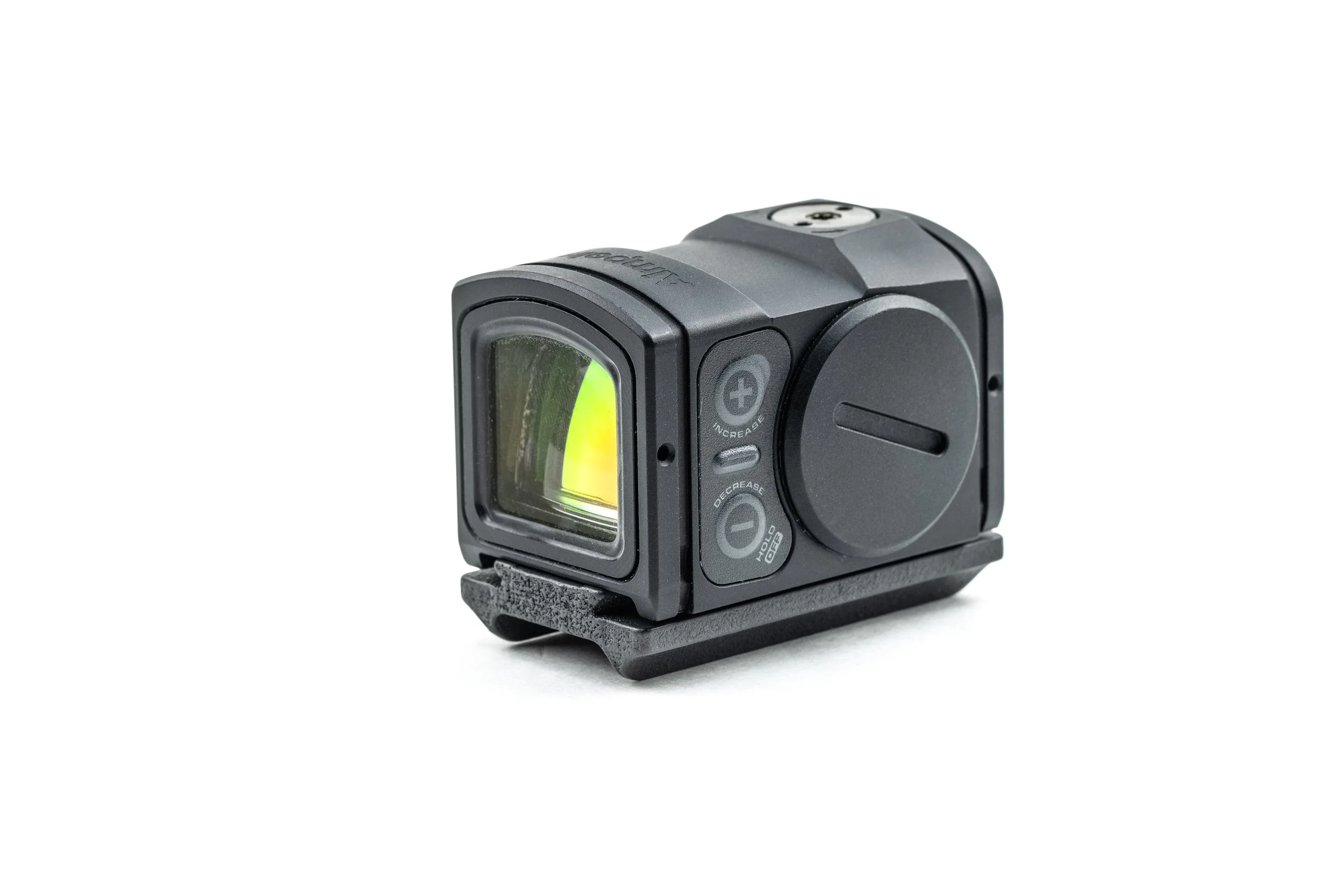

Aimpoint ACRO — suggested max torque value 27 in-lbs

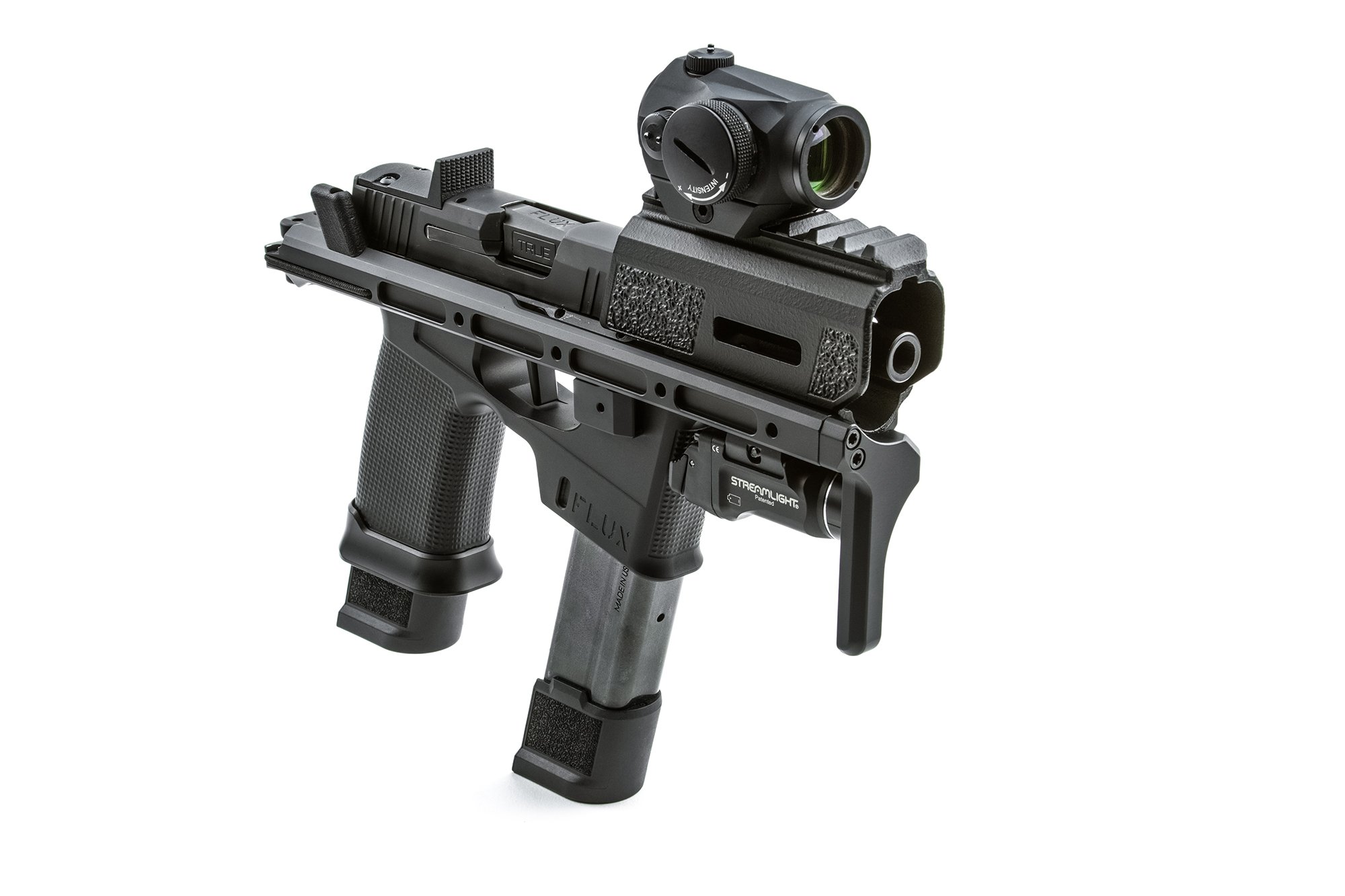

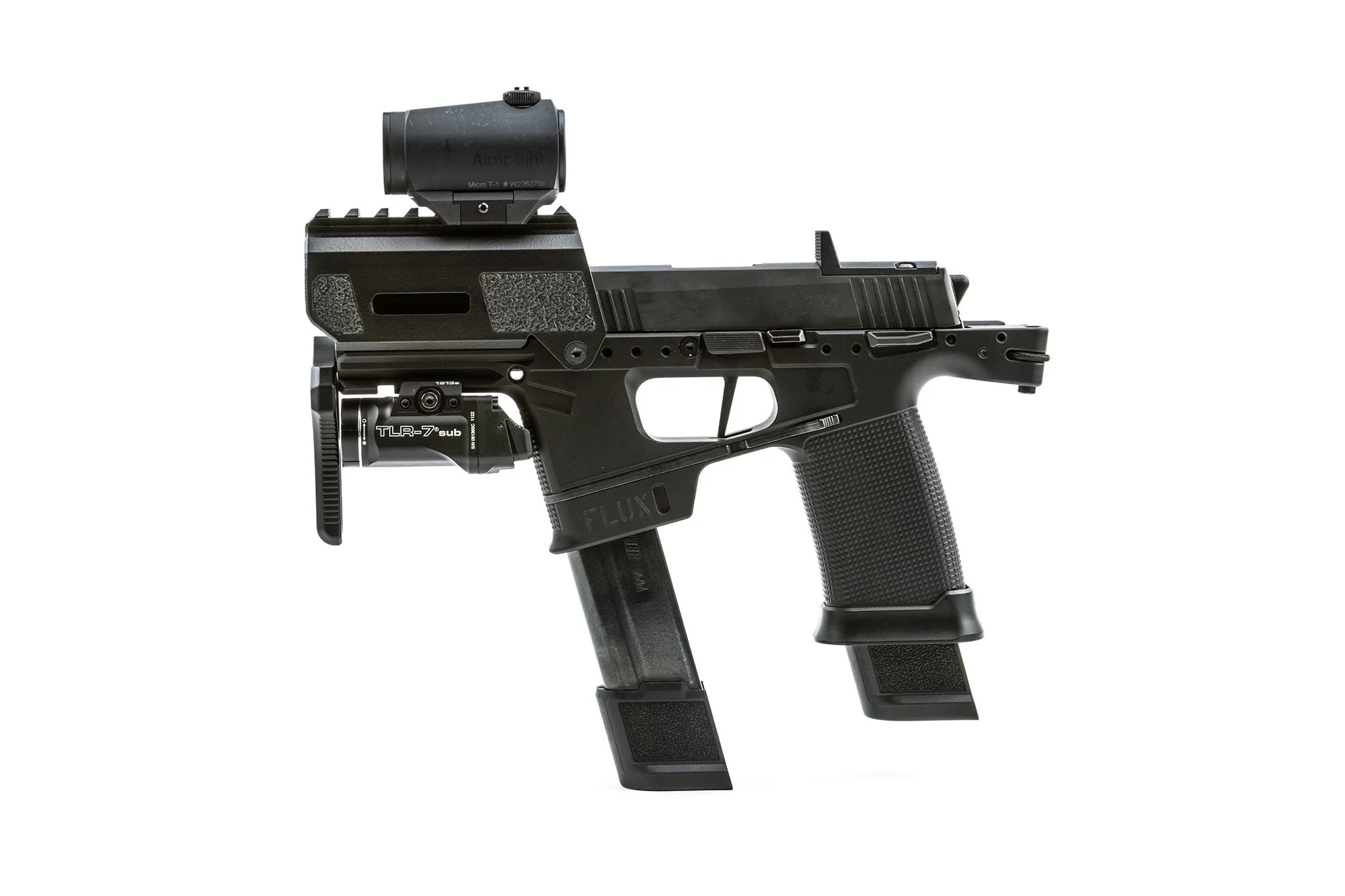

Aimpoint Micro — suggested max torque value 12 in-lbs

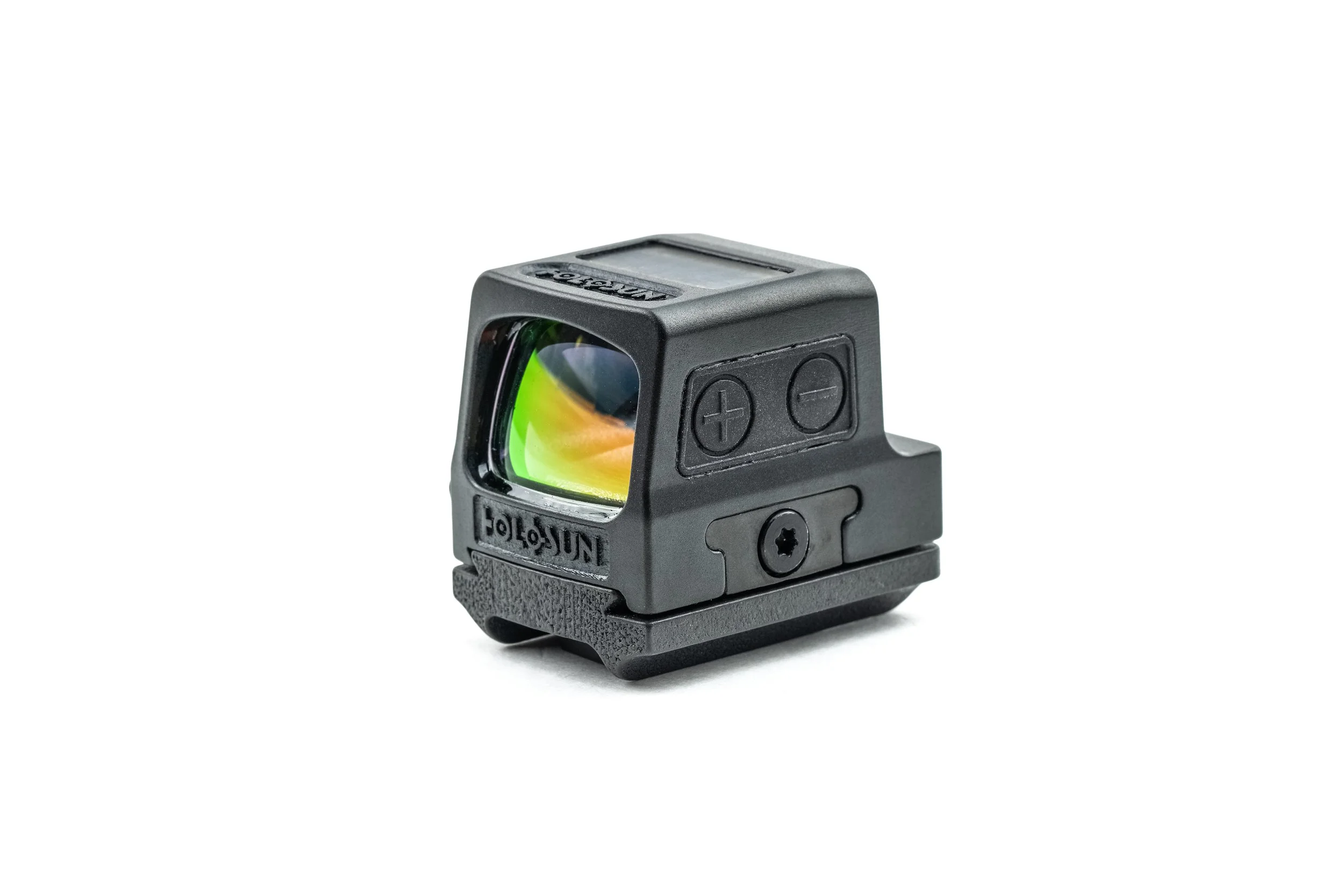

Holosun 509T — suggested max torque value 20 in-lbs
Eack kit includes
(1) 6-32 T15 screw for the rear mounting tab suggested max torque value for installation 15 in-lbs (side tab screw).
**This kit utilizes the (2) factory 6-32 x 5/16 TORX screws from the OEM shroud, suggested torque value 5 in-lbs.
**Ability to remove slide depends on combination and type of attached accessories and their hardware.
**3rd party MLOK accessories may need shorter 10-24 screws to clear slide for disassembly, available in the Hardware section.
**Please observe Magpul’s max torque values for MLOK; 35 in-lbs for metal accessories and 15 in-lbs for polymer accessories.
**Use of barrels less than 6” is not recommended or encouraged for NEXUS and NEXUS K models. NEXUS SD is intended to be used with XL or longer barrels and a suppressor.
**Threadlocker is recommended for installation, such as Vibra-Tite VC-3 Threadmate.
