Adapter plates for use with the MLOK variety of NEXUS
Designed and made in the US, A20X Aluminum

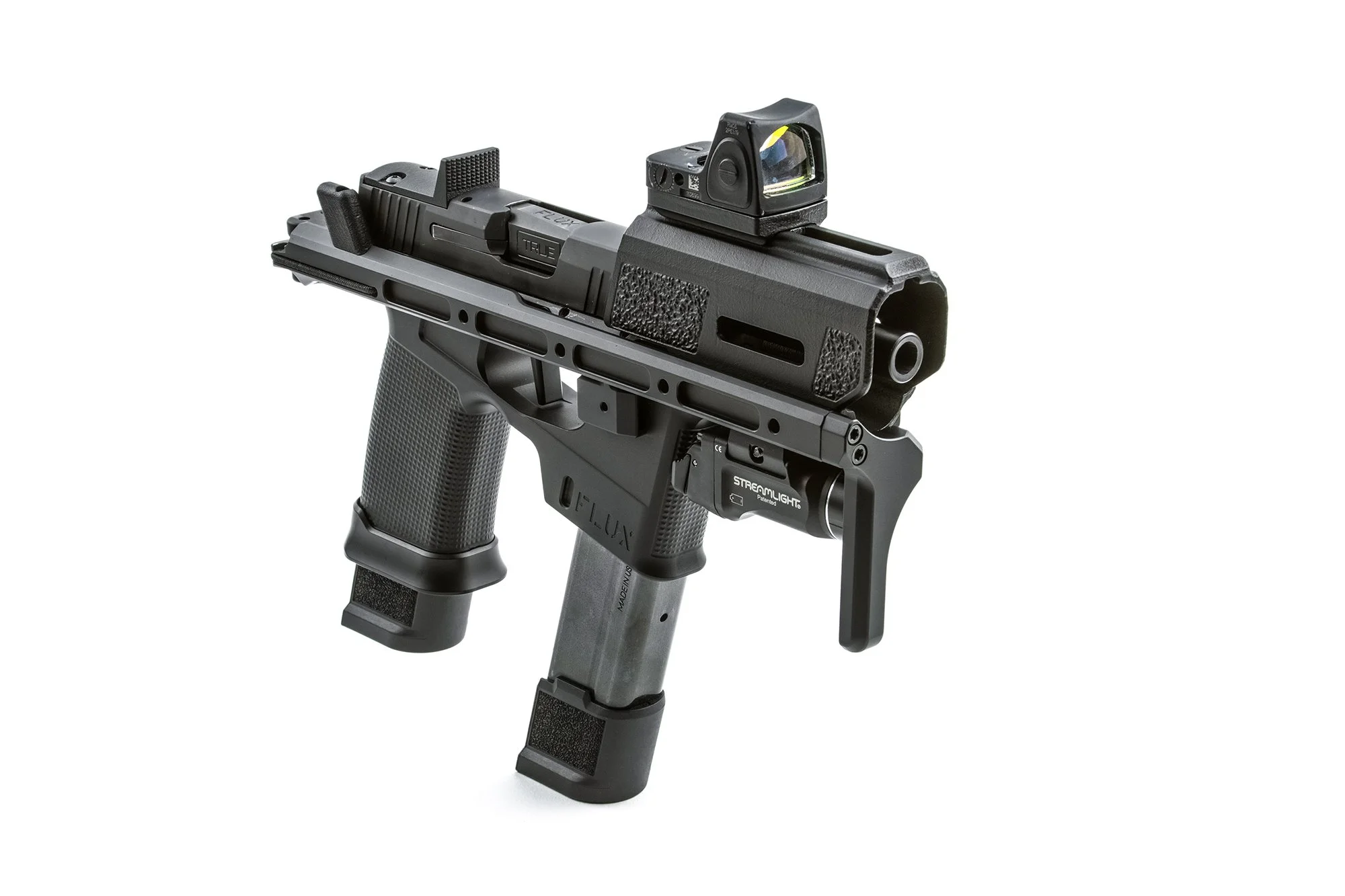

RMR 6-32
HOLO K M3-0.5

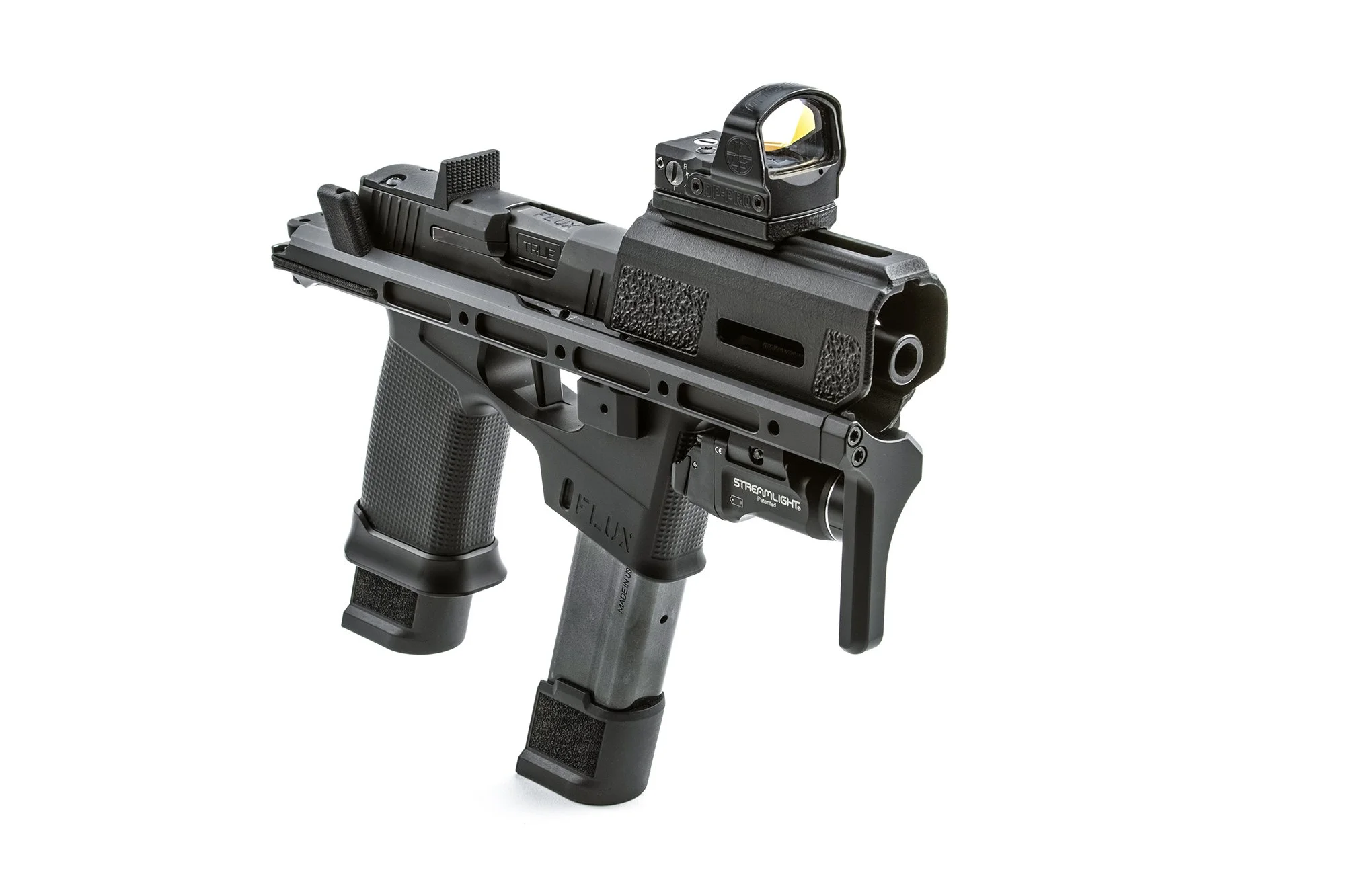

DPP M4-0.7
Each kit includes
(2) 10-24 screws and (2) MLOK T-Nuts — suggested max torque value for installation on NEXUS 25 in-lbs, suggested optic max torque value 15 in-lbs.
**Each optic plate is designed to use the screw thread originally included with the optic. Due to the endless amount of optics from different manufacturers using these footprints, in some cases you may need to source screws of a different length, or alter your existing screws. See the associated thread for each plate type and contact us for assistance if necessary.
**Please observe Magpul’s max torque values for MLOK; 35 in-lbs for metal accessories and 15 in-lbs for polymer accessories.
**Threadlocker is recommended for installation, such as Vibra-Tite VC-3 Threadmate.
