HELPeR P320

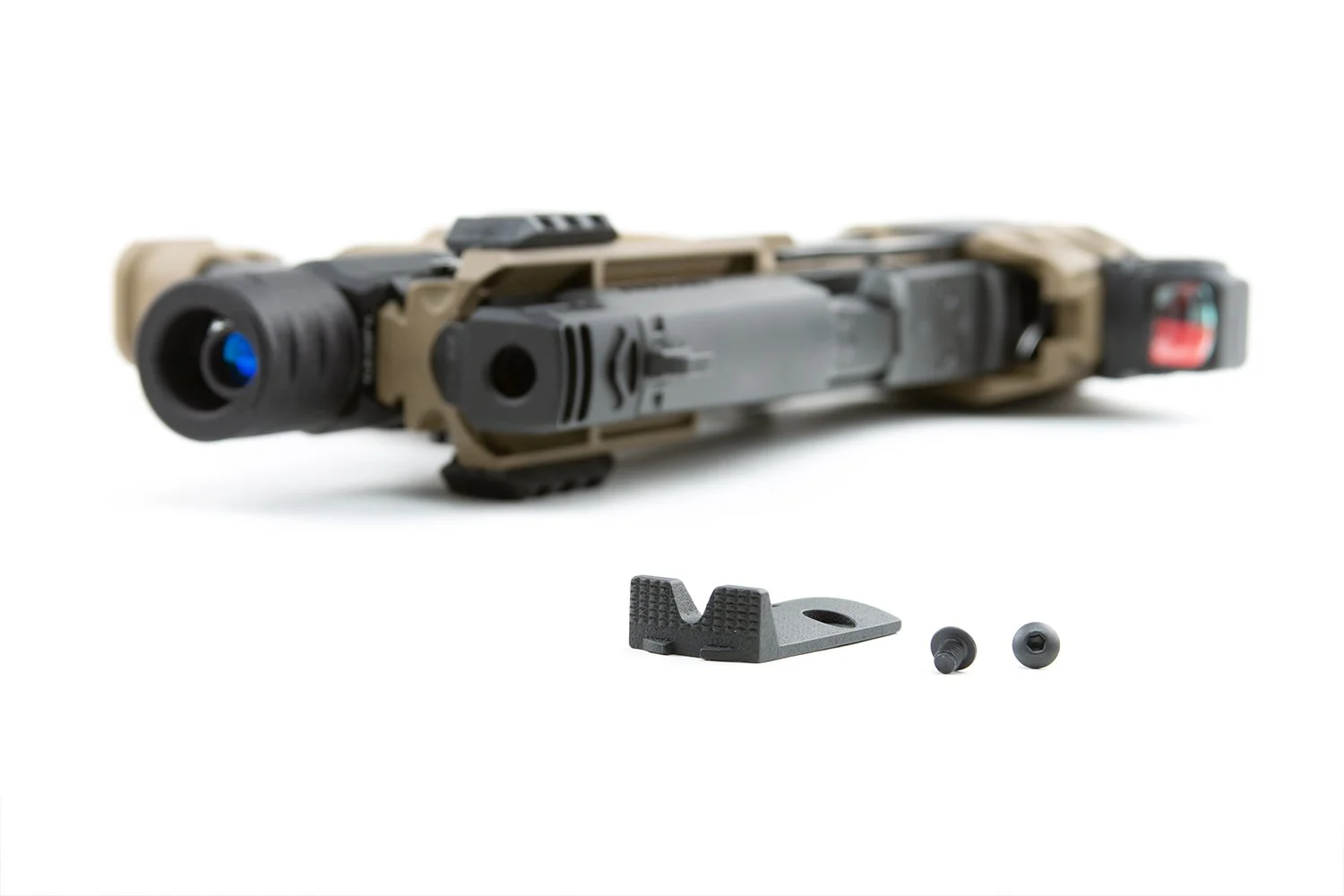

A streamlined ambidextrous charging handle and forward assist device for the Sig P320/Flux Raider. Features a simplistic design with nothing hanging off the side to dig into you or wear a hole through a bag and effective texturing that makes it easy to use in all situations. Especially useful when using the Tactical Development Forward Halo.

Designed and made in the US, A20X Aluminum

ROMEO1PRO footprint will fit all recent OEM Sig Sauer P320 slides. Depending on your preference towards backup iron sights, this model will delete the rear iron sight for models like the X5**, XCarry Legion, M17/18, etc.

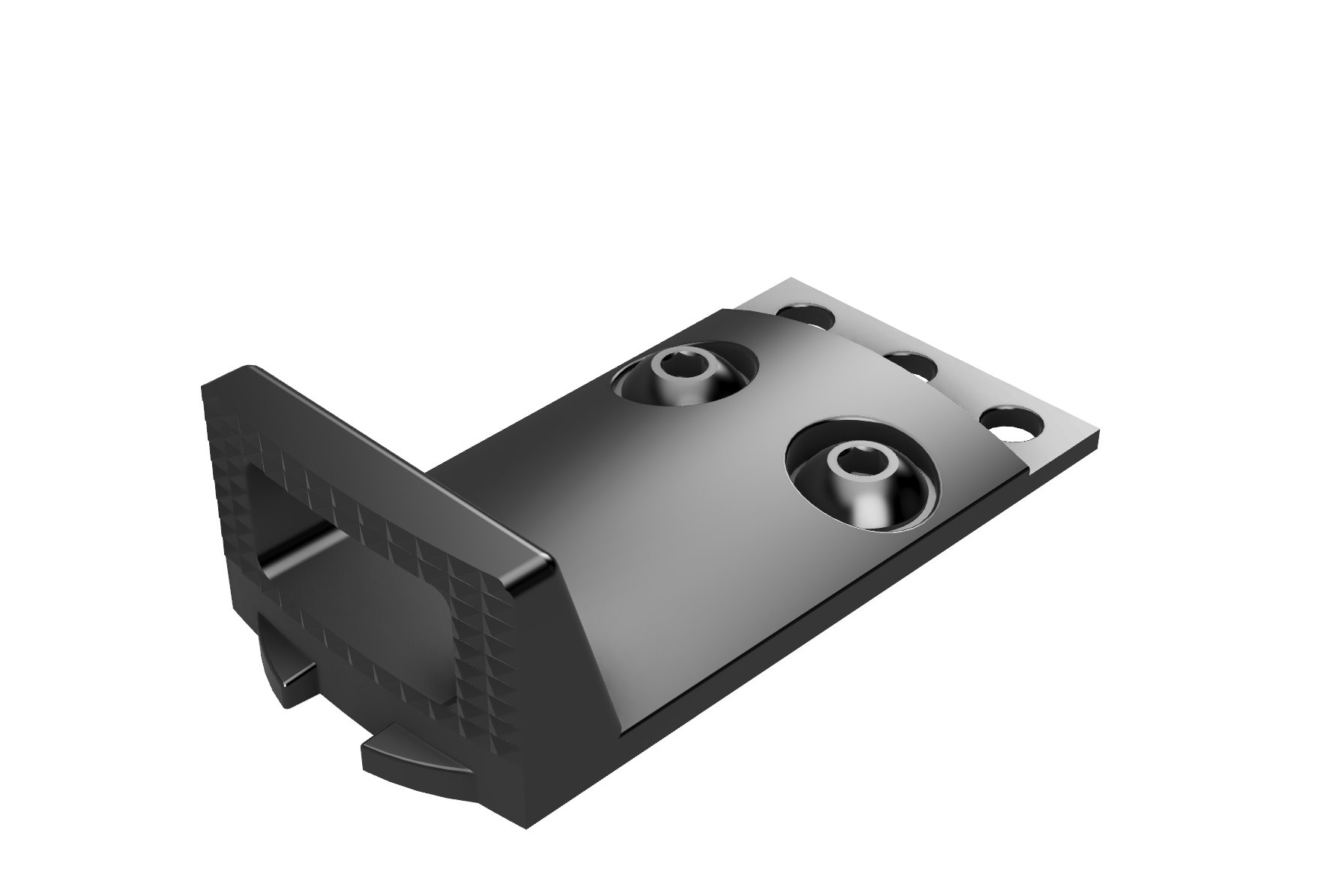

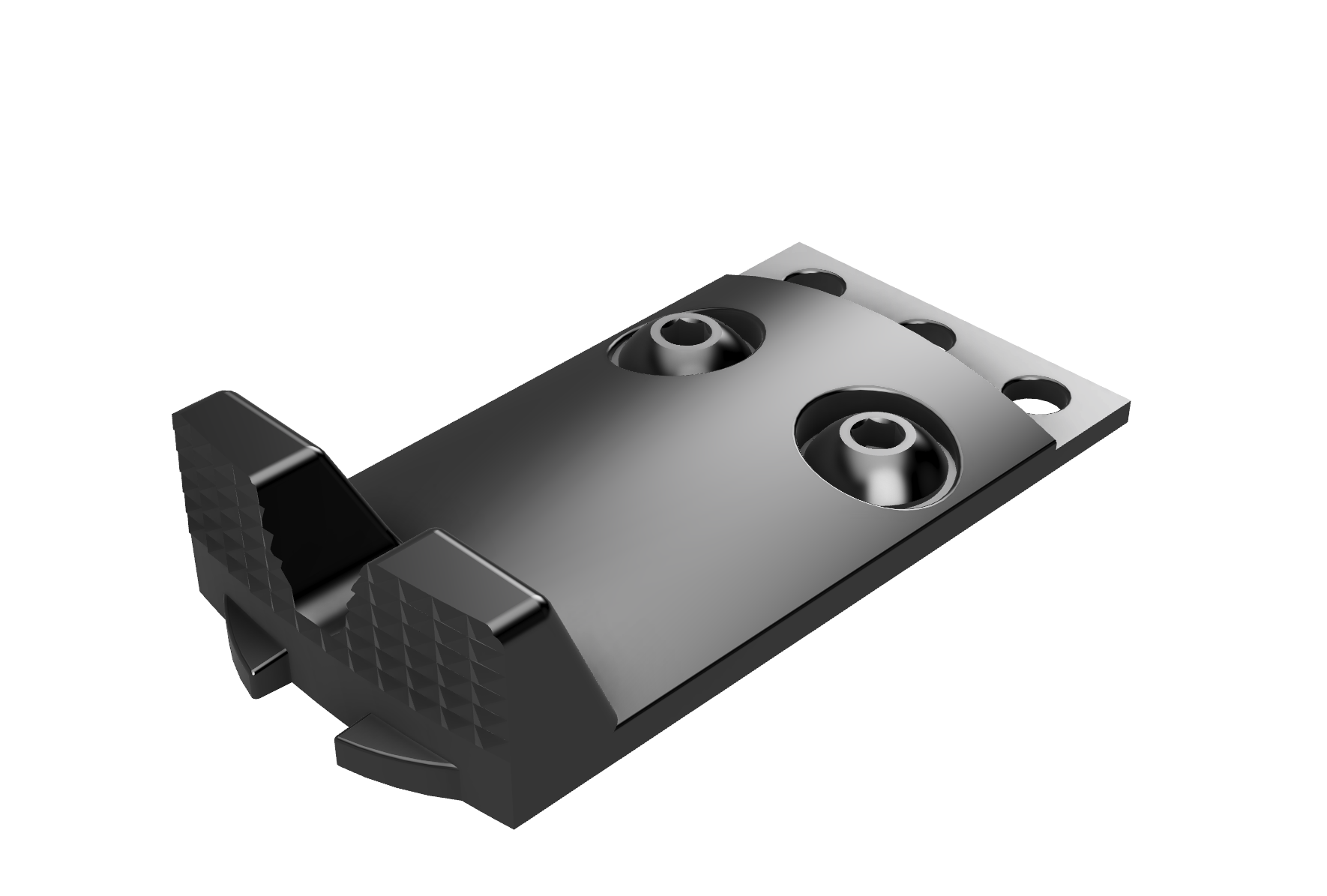

M17 footprint is meant for all Sig OEM slides where the rear iron sight attaches via screws from inside the slide; for example, the civilian M17 & M18, X5, Spectre, XCarry Legion and others.

ZEV RMR footprint is designed around ZEV Technologies Octane 320 slides. It is a standard RMR footprint so it may fit other similar cut slides with or without ZEV posts, but cannot be guaranteed. The location of the optic cut on non-ZEV slides may not be compatible with the Flux Raider/HELPeR combination, in some cases the screws heads may only need to be filed slightly to clear the constraints Raider Chassis’ rear optic mount. Testing the fit and compatibility before actual use on non-Zev slides is strongly encouraged.

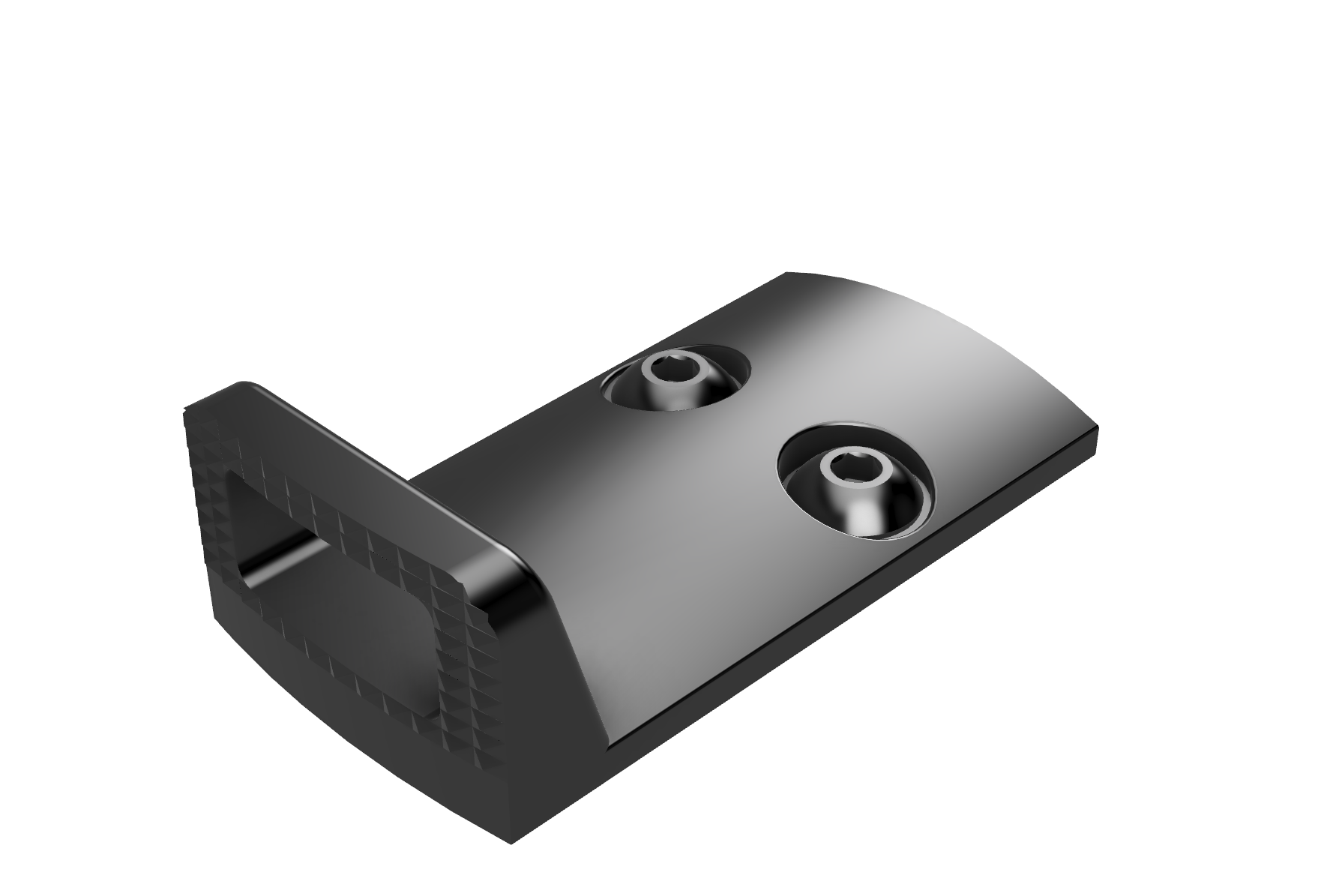

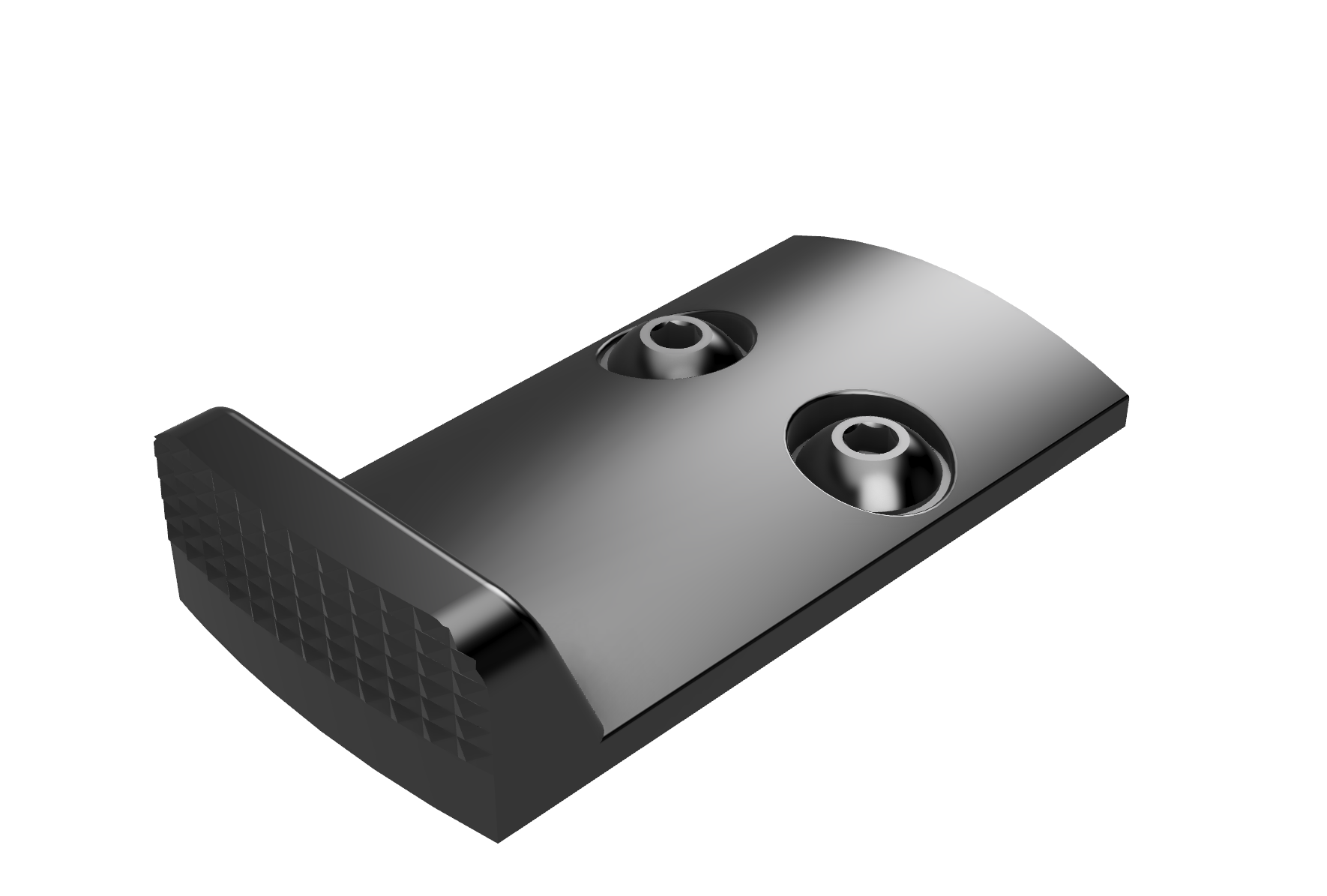

DELTAPOINT PRO footprint is intended for non-OEM slides cut for Leupolds DeltaPoint Pro. Many third party slides using this cut are often reported as being out of spec, fit cannot be guaranteed. The location of the optic cut on some slides may not be compatible with the Flux Raider/HELPeR combination.

Each kit includes

• 1 pair of M4-0.07 x 5mm for ROMEO1PRO P320 and M17 / DELTAPOINT PRO – suggested torque value for installation is 20 in-lbs

• 1 pair each of 4-40 x 5/16 and 6-32 x 5/16 for ZEV RMR – suggested torque value for installation is 15 in-lbs. ZEV slides are threaded for 4-40, most other slides will be cut for 6-32, this should cover most RMR slides. In rare occasions, another thread may be used depending on the manufacturer or shop that performed the cut.

**Before any live fire, testing the fit and compatibility of your individual configuration is strongly encouraged due to the wide variety of slides and parts used in Raider builds. Ensure at the slide’s furthest point rearward the HELPeR does not contact the Raider chassis itself.

**A very limited amount of early X5 may have a smaller than standard pocket for the front lugs and may not be compatible with the ROMEO1PRO footprint HELPeR, in this specific rare case, choose DELTAPOINT PRO.

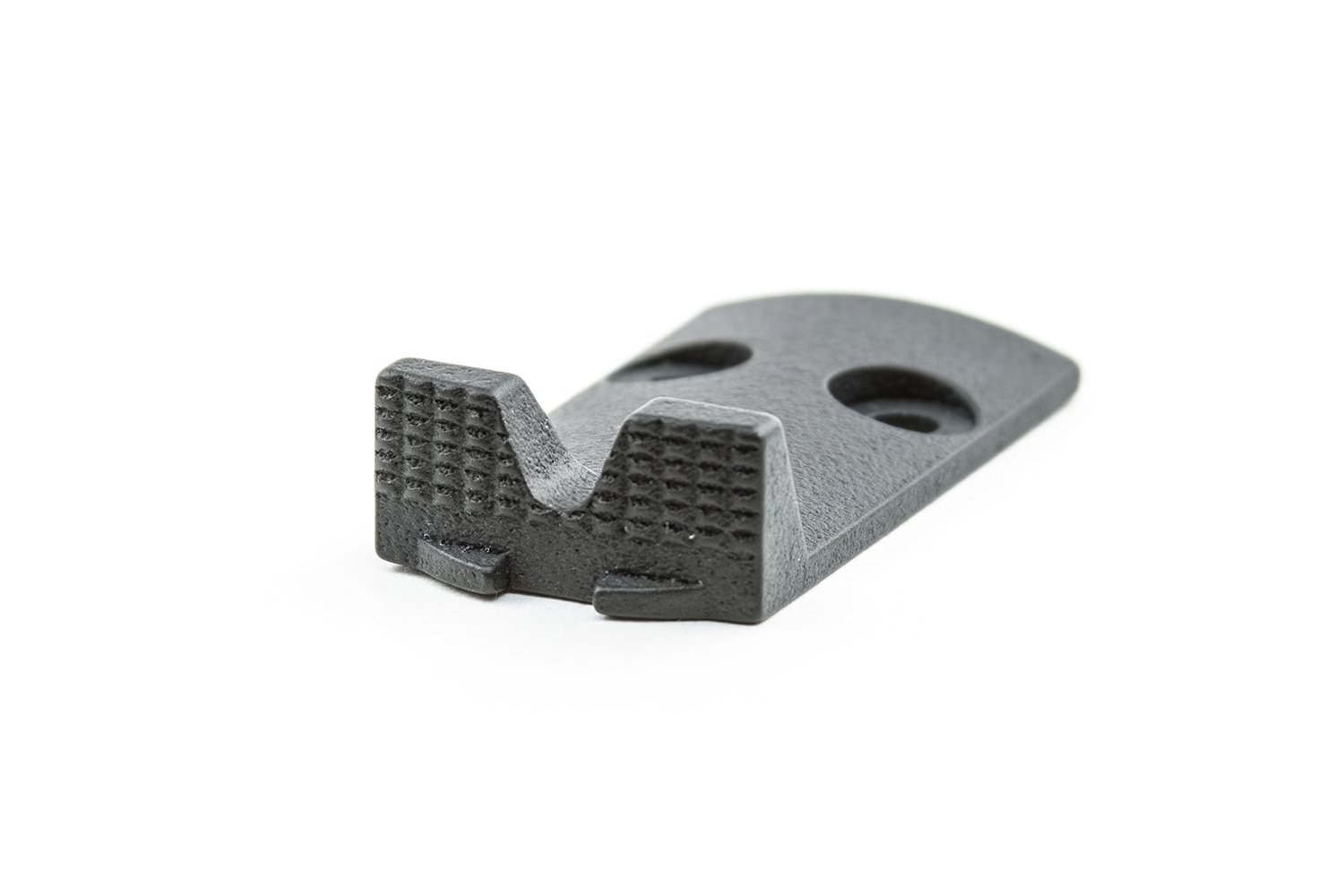

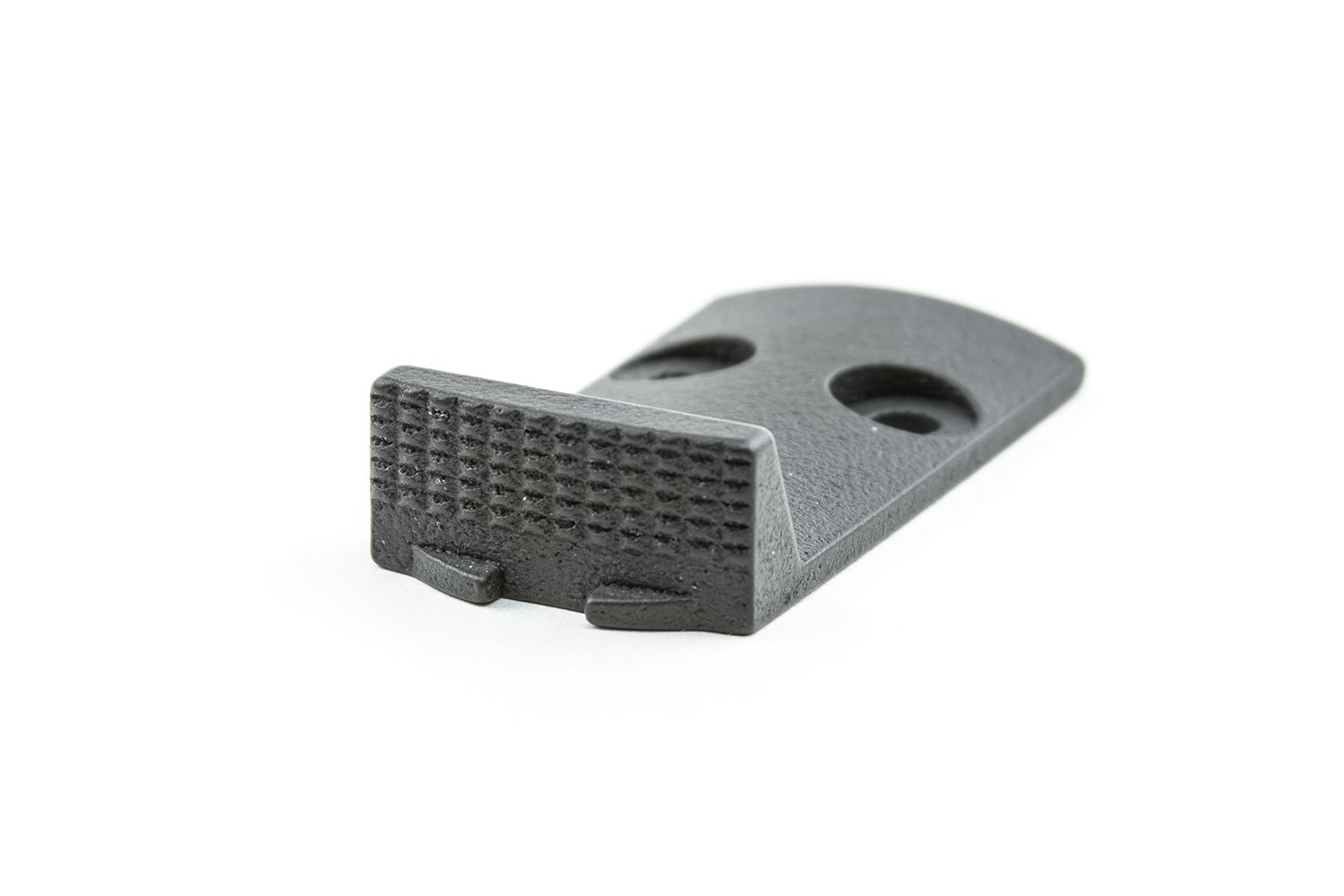

**When used with the Tactical Development Forward Halo, only the Short and Short V models allow the slide to be installed/removed while the Halo is in place.

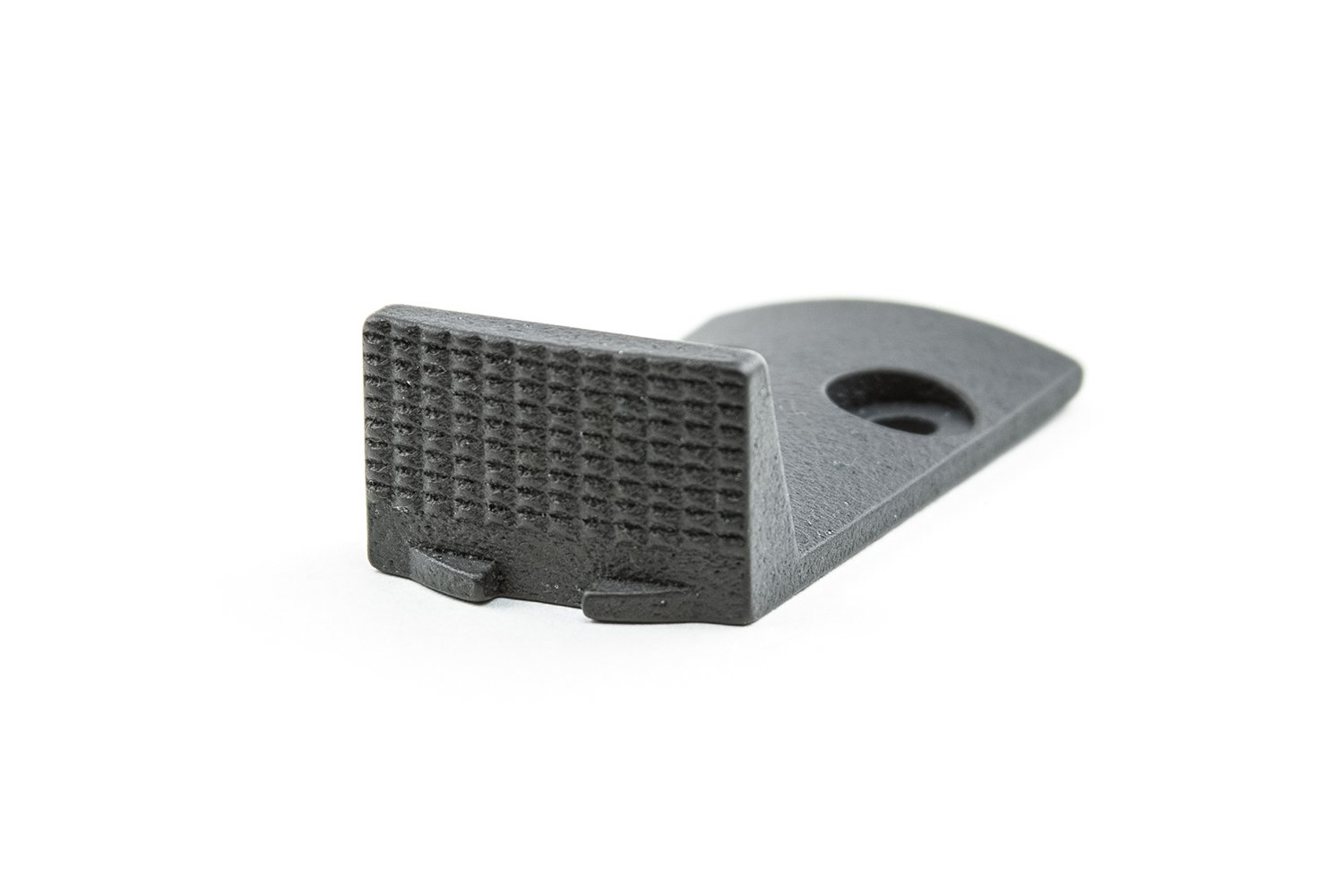

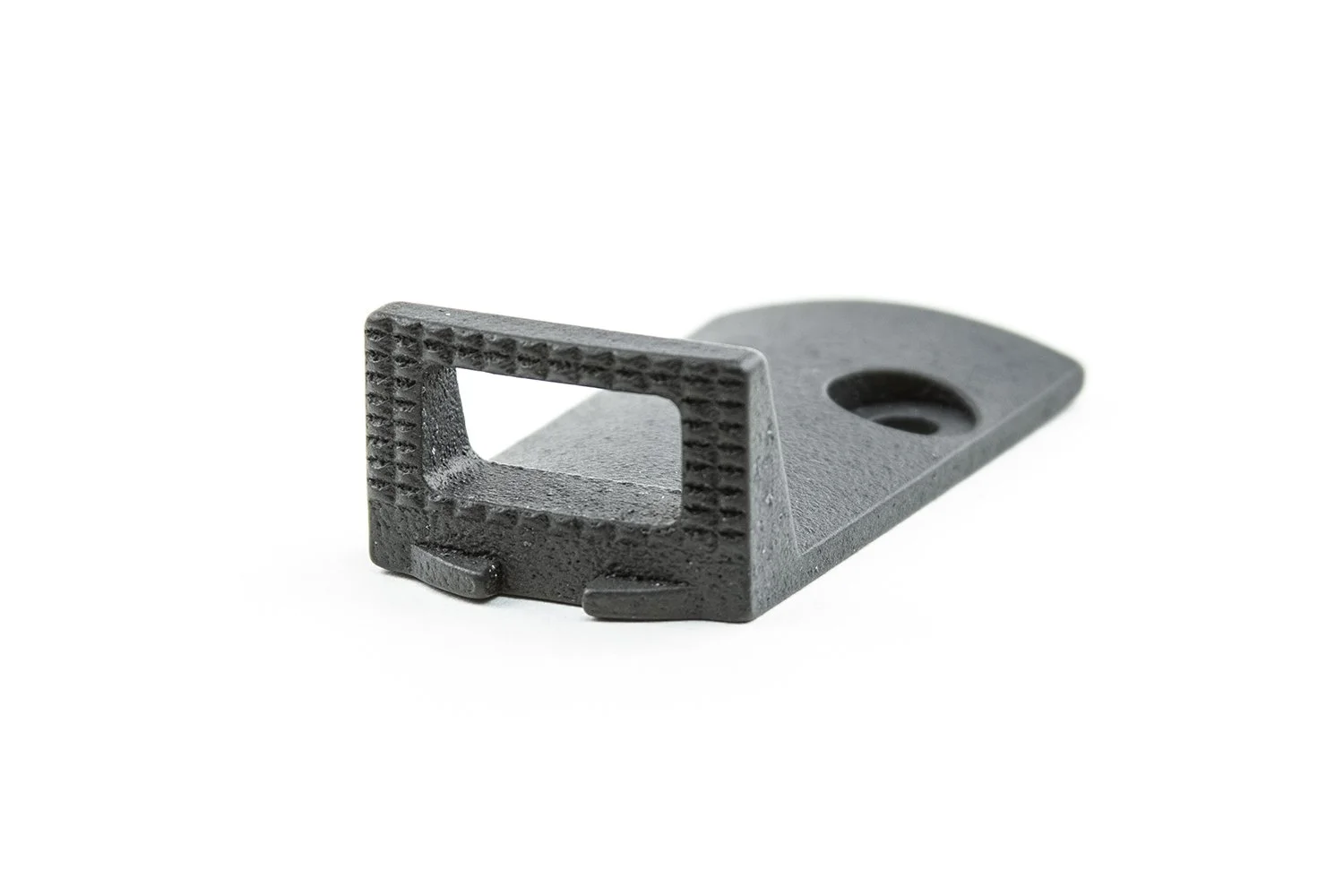

**Only the Tall with Iron Sight Portal and Short V models allow the use of backup iron sights.

**Designed and intended for OEM slides and the OEM TORX screws.

**For military surplus M17 & M18, ROMEO1PRO is the suggested model of HELPeR, if you wish to retain your rear backup iron sight, the Tactical Development M17X/18X Rear Sight Shim is recommended.

**Vibra-Tite VC-3 Threadmate is recommended for installation.
